Tool cabinet CSPS 61cm - 01 black wooden drawer with mesh wall (white handle)
TECHNICAL SPECIFICATIONS:
1. GENERAL SPECIFICATIONS
Package dimension: 62cm W x 43cm D x 78.5cm H

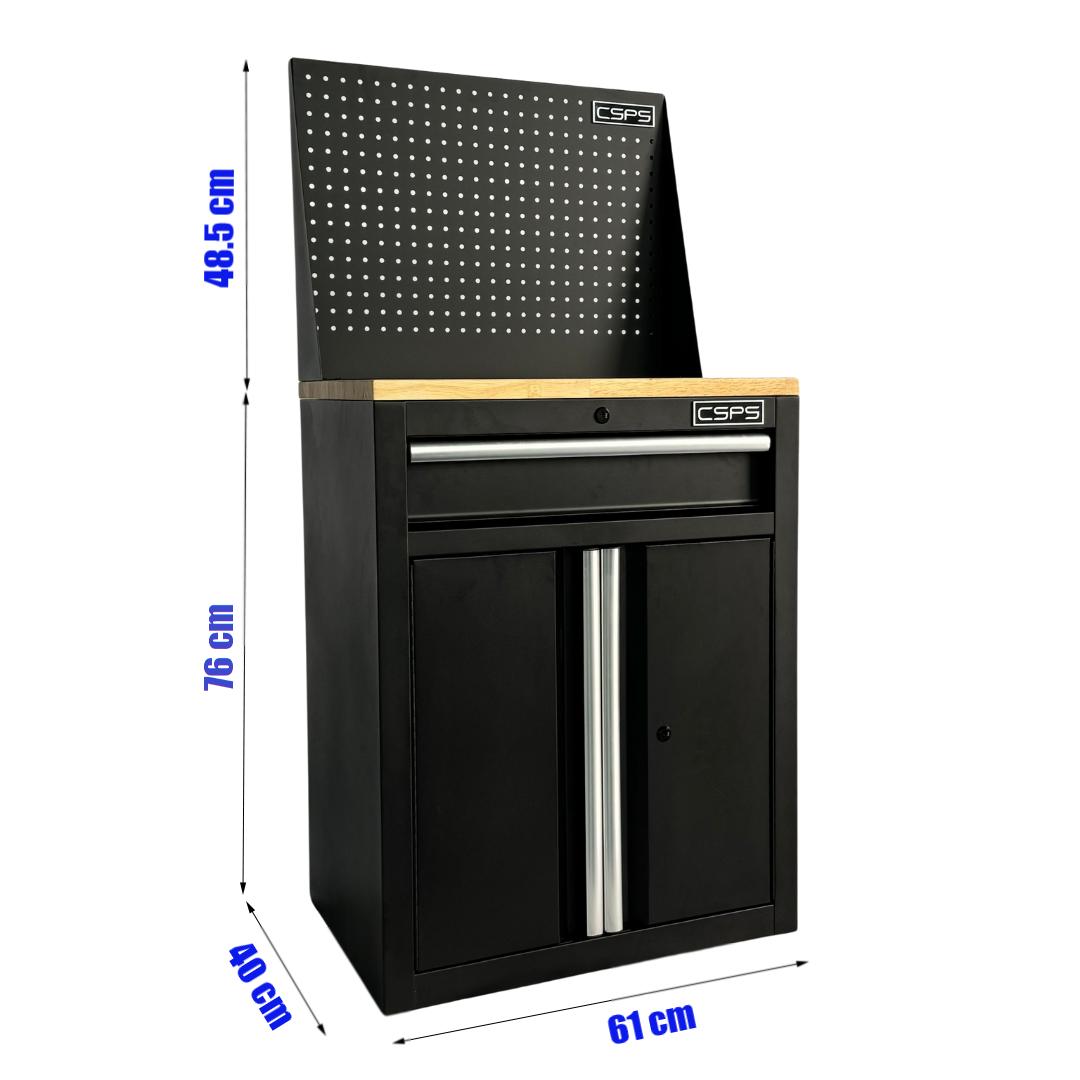

Product dimension: 61cm W x 40.5cm D x 127cm H (Including mesh wall height)
Net weight: 39.3kg
Warranty: 2 years / 2 years.
2. CAPACITY
Overall capacity:
+ Total: 450 kg
+ Door base cabinet: 450 kg. Quantiny: 01
+ Small drawer: 45 kg/ Drawer. Quantiny: 03
+ Large drawer/ Bid Drawer: 90kg/ drawer.Quantiny: 01
Drawers:
+ Drawer: 61cm W x 40cm D x 76cm H. Quantity/ Quantiny: 04
+ Using 3-layer ball bearing slides.
+ Load capacity: 45 kg/ drawer.
+ Usage cycle: 40,000 times.
3.OTHERS
Coating:
Color:
+ Matt Black
+ Matt Red
Powder coating technalogy.
Coating durability: 10 years.
4.STANDARDS
Appearance: 16 CFR 1500.48/1500.49 (Scope expanded): sharp point test.
16 CFR 1303: lead-containing paint test.
Coating: ASTM B117 (mod.) & ASTM D610 (mod.): corrosion test.
ASTM D3363 (mod.): hardness test.
ASTM D2794: impact test.
ASTM D4752: Solvent resistance rub test.
ASTM D3359: Cross-cut tape test.
Steel: ASTM A1008: standard specification for steel.
Function: ANSI/BIFMA X 5.9: Storage unit test – Static load loading; dynamic loading; durability testing.
TECHNICAL SPECIFICATIONS OF MESH WALL:
Product code: VNDT61001BB1
1. GENERAL SPECIFICATIONS
Package dimension (cm)/ Package dimension: 64.5 W x 48 D x 7 H
Package weight (Kg) / Gross weight: 8 Kg
Product dimension (cm) / Product dimension: 61 W x 40.7 D x 48.5 H
Product weight (Kg) / Net weight: 7.1 Kg
Warranty: 2 years / 2 years.
2. CAPACITY
Overall capacity: 42 kg
