TECHNICAL SPECIFICATIONS:

1. GENERAL INFORMATION

• Package dimension: 62cm W x 43cm D x 83.5cm H

• Gross weight: 49.3kg

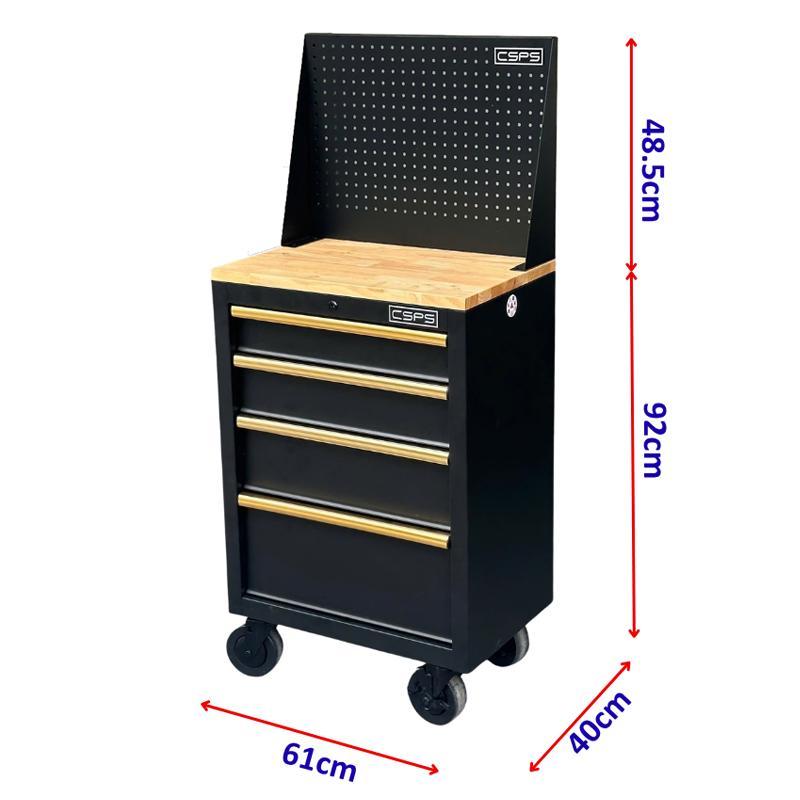

• Product dimension: 61cm W x 40cm D x 140.5cm H (Including wooden top & pegboard height)

• Net weight: 44.5kg

• Warranty: 2 years

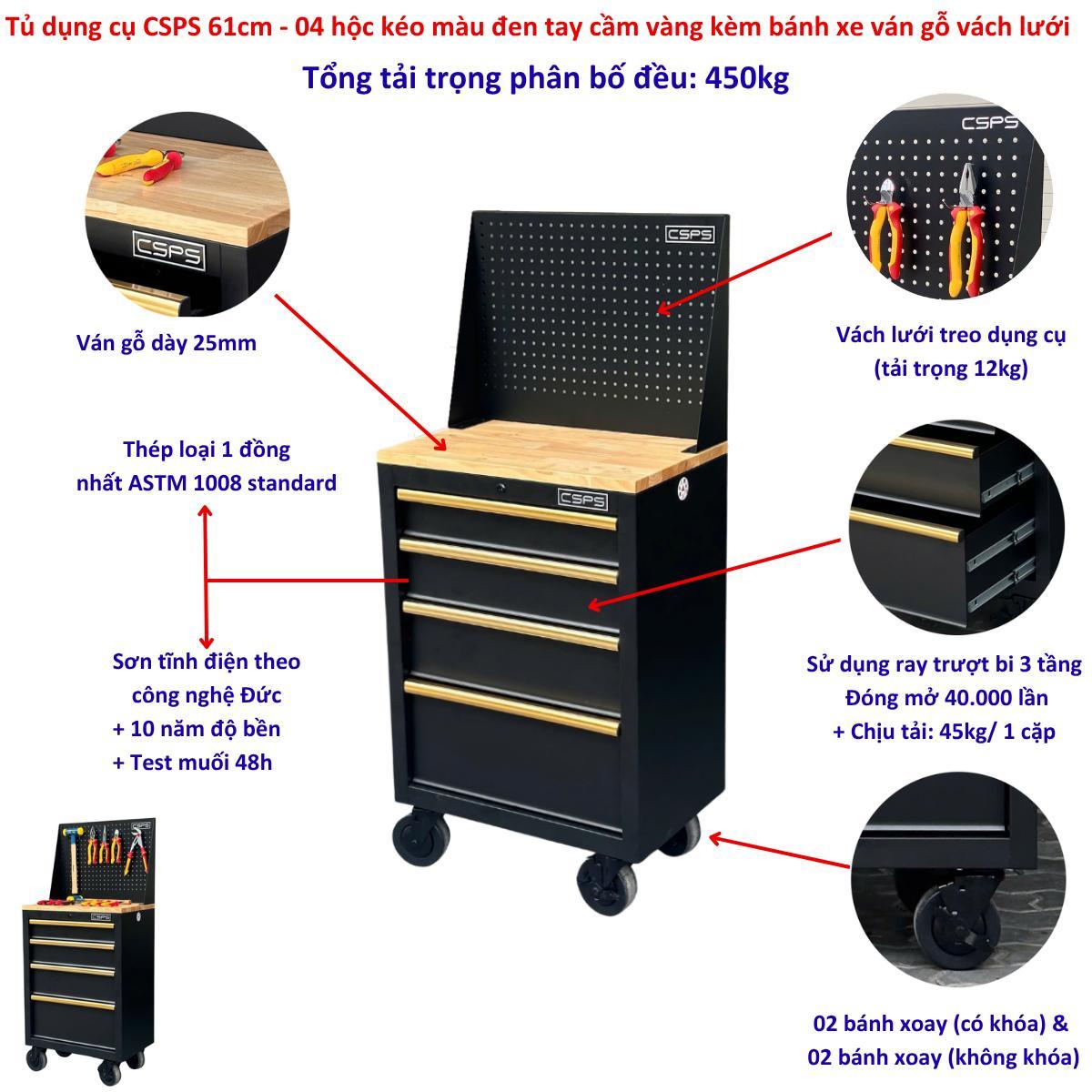

2. CAPACITY

• Overall capacity:

  • Total: 450kg

  • Door base cabinet: 450kg. Quantity: 01

  • Partition: 45kg / drawer. Quantity: 01

  • Small Drawer : 45kg/ drawer. Quantity: 03

  • Big Drawer : 90kg/ drawer. Quantity: 01

  • Drawer: 61cm W x 40cm D x 76cm H. Quantity: 04.

  • Using Ball bearing slides.

  • Capacity: 45 kg / drawer

  • Usage cycle: 40,000 lần

3. OTHERS

• Coating:

• Color:

  • Matt Black

• Powder coating technology

• Coating durability: 10 years

4. STANDARDS

• Appearance: 16 CFR 1500.48/1500.49 (Scope widened): sharp point test

• 16 CFR 1303: lead-containing paint test

• Coating: ASTM B117 (mod.) & ASTM D610 (mod.): corrosion test

• ASTM D3363 (mod.): hardness test

• ASTM D2794: impact test

• ASTM D4752: solvent resistance rub test

• ASTM D3359: cross-cut tape test

• Steel: ASTM A1008: standard specification for steel

• Function: ANSI/BIFMA X 5.9: Storage unit test – Static load loading; dynamic loading; durability testing

5. RUBBERWOOD TOP & PEGBOARD SPECIFICATIONS:

• Package dimension: 64.5cm W x 48cm D x 7cm H

• Gross weight: 8kg

• Product dimension: 61cm W x 40.7cm D x 48.5cm H

• Net weight: 7.1kg

• Warranty: 2 years

• Overall capacity: 42kg

• Coating: Powder coating technology

6. CASTERS SPECIFICATIONS:

• Package dimension: 32.5cm W x 26.5cm D x 10.5cm H

• Gross weight: 5.5 kg

• Product dimension:

  • Wheel diameter: 127mm

  • Wheel width: 49mm

• Net weight: 5.3 kg

• Warranty: 2 years

• Overall capacity (4 wheels): 680kg

• Coating: Black
