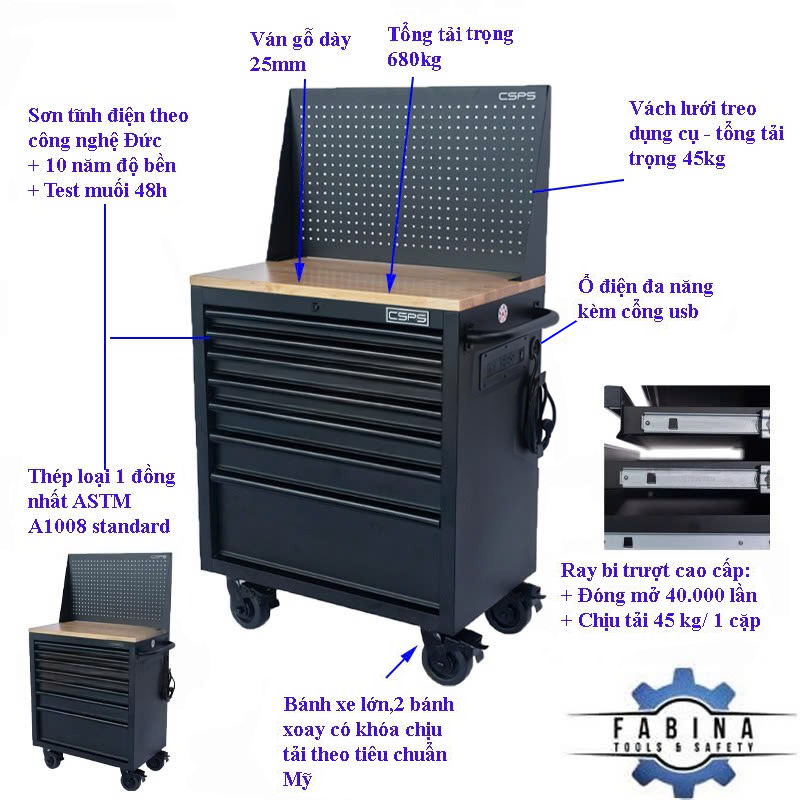

CSPS Tool Cabinet Matte Black with 7 Drawers with pegboard and wooden top

CSPS TOOL CABINET 7 DRAWERS – WOODEN TOP & PEGBOARD

1. GENERAL SPECIFICATIONS

• Package dimensions: 79 cm (W) x 49 cm (D) x 87.5 cm (H)

• Gross weight: 70.5 kg

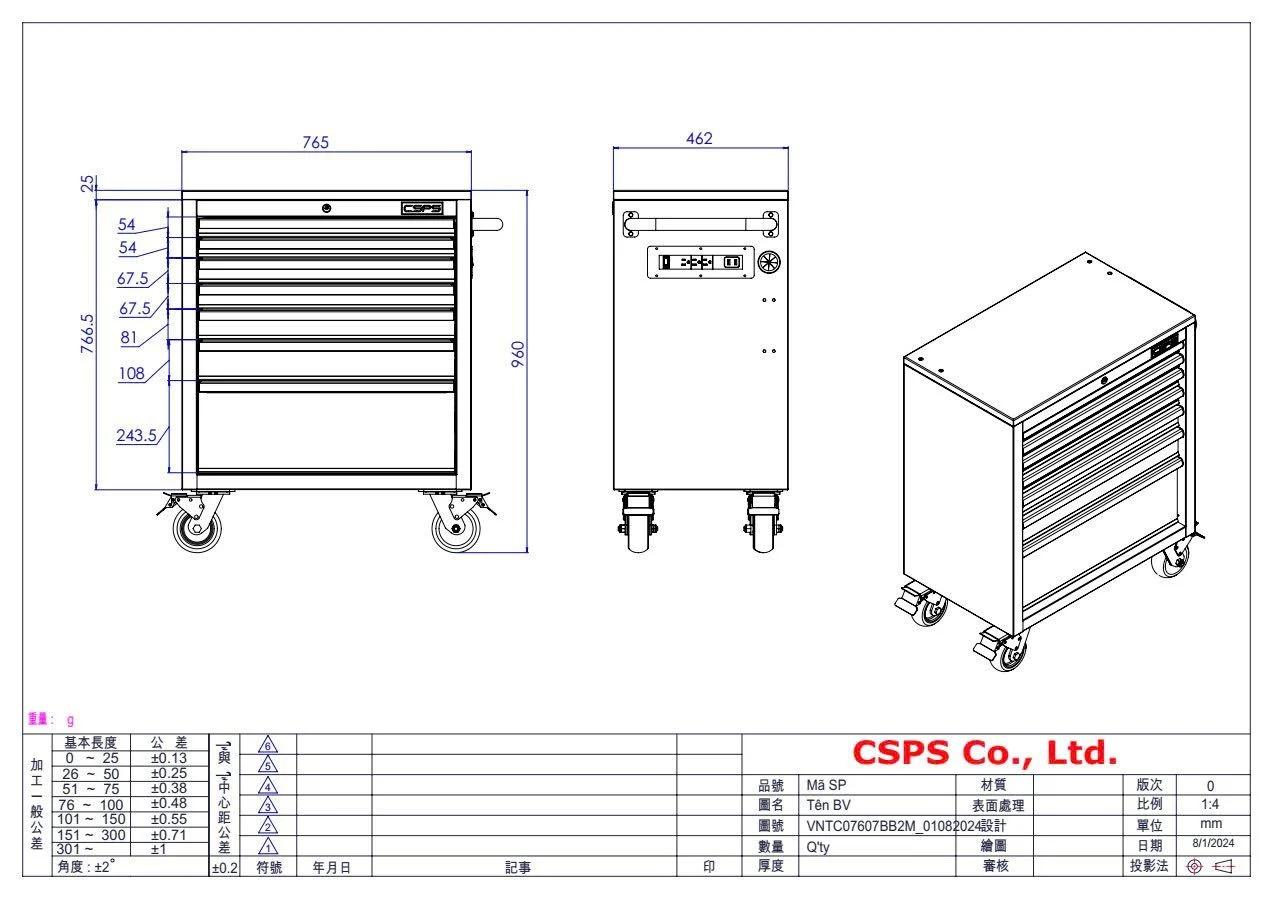

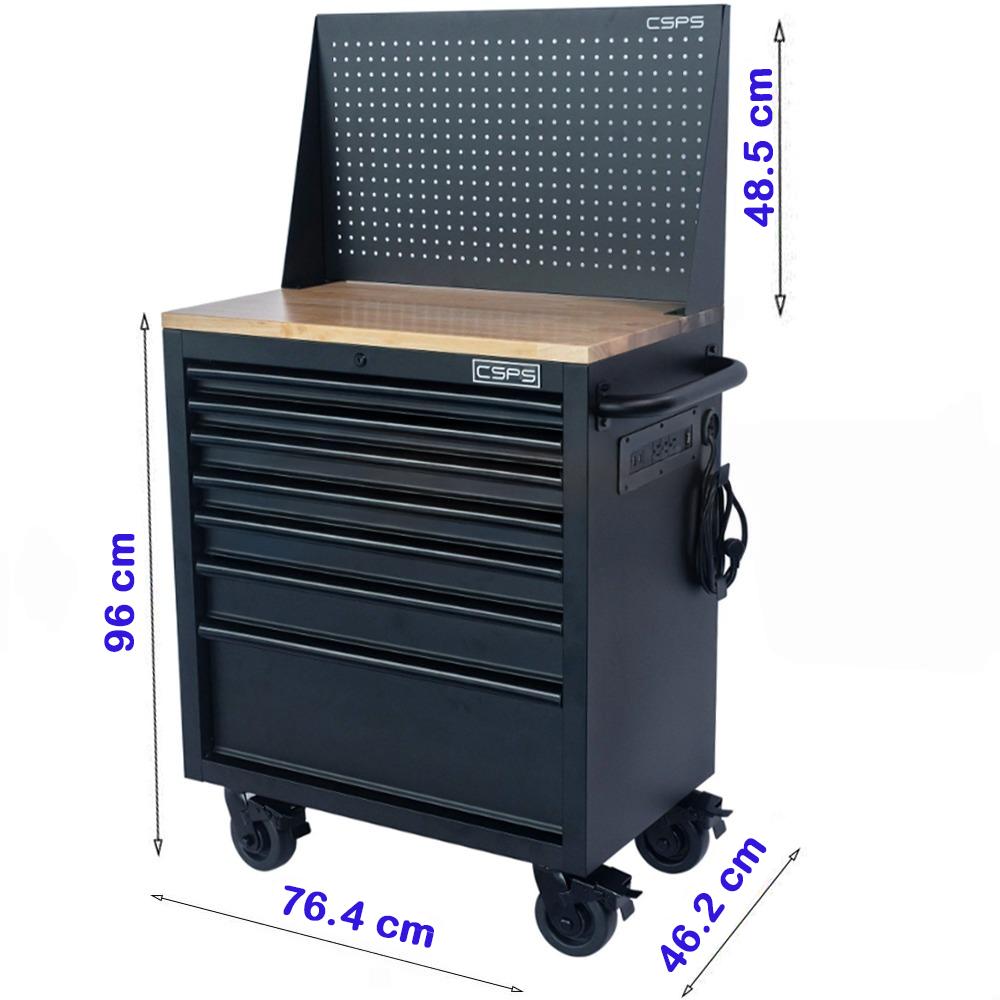

• Product dimensions: 76.5 cm (W) x 46.2 cm (D) x 144.5 cm (H) (Including caster and pegboard height)

• Net weight: 66.1 kg

• Warranty: 2 years

2. CAPACITY

• Total load capacity: 315 kg

• Drawers: 7 drawers

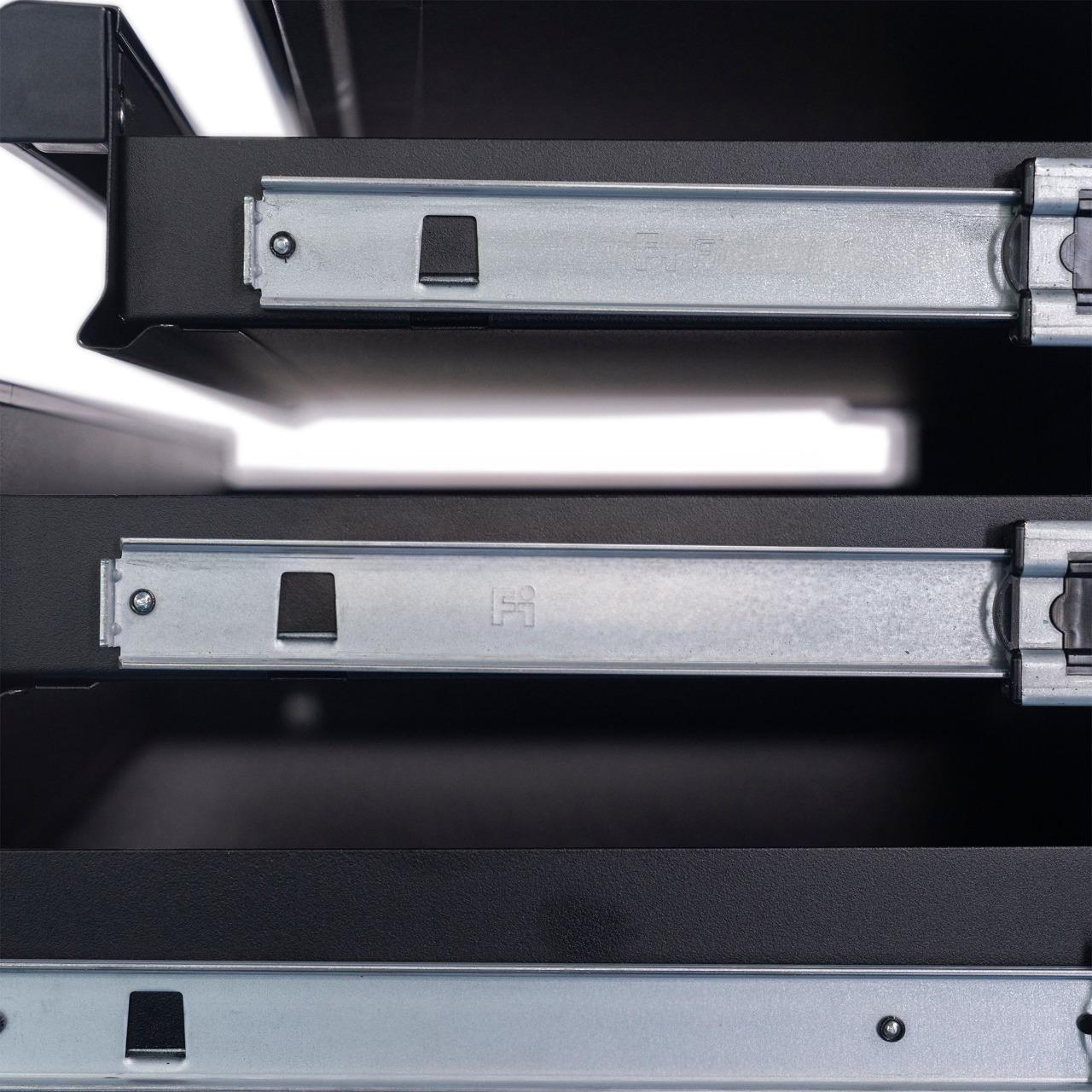

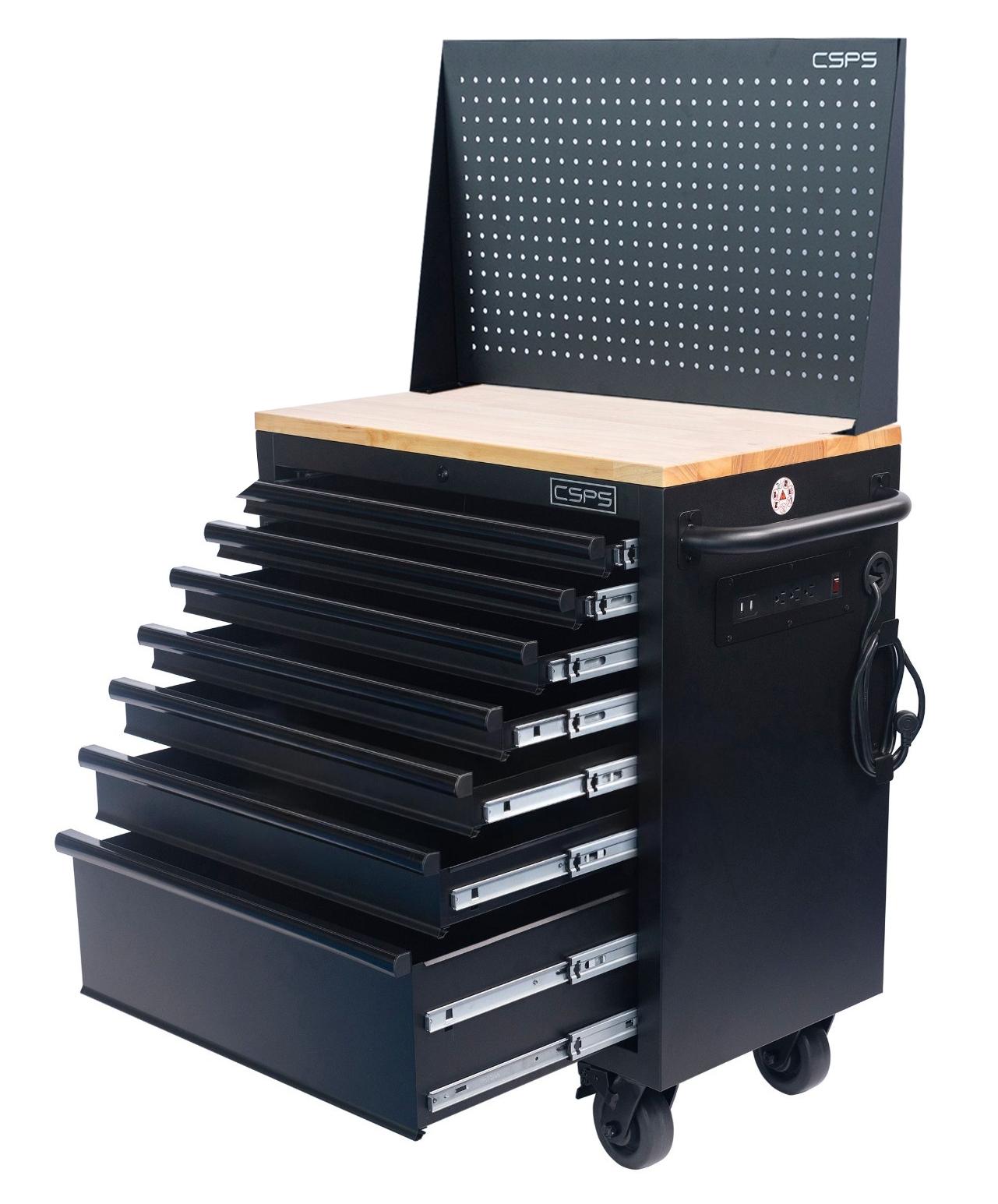

• Ball-bearing slides with smooth operation

• Load capacity: 45 kg/drawer

• Open/close cycles: 40,000 times

3. OTHERS

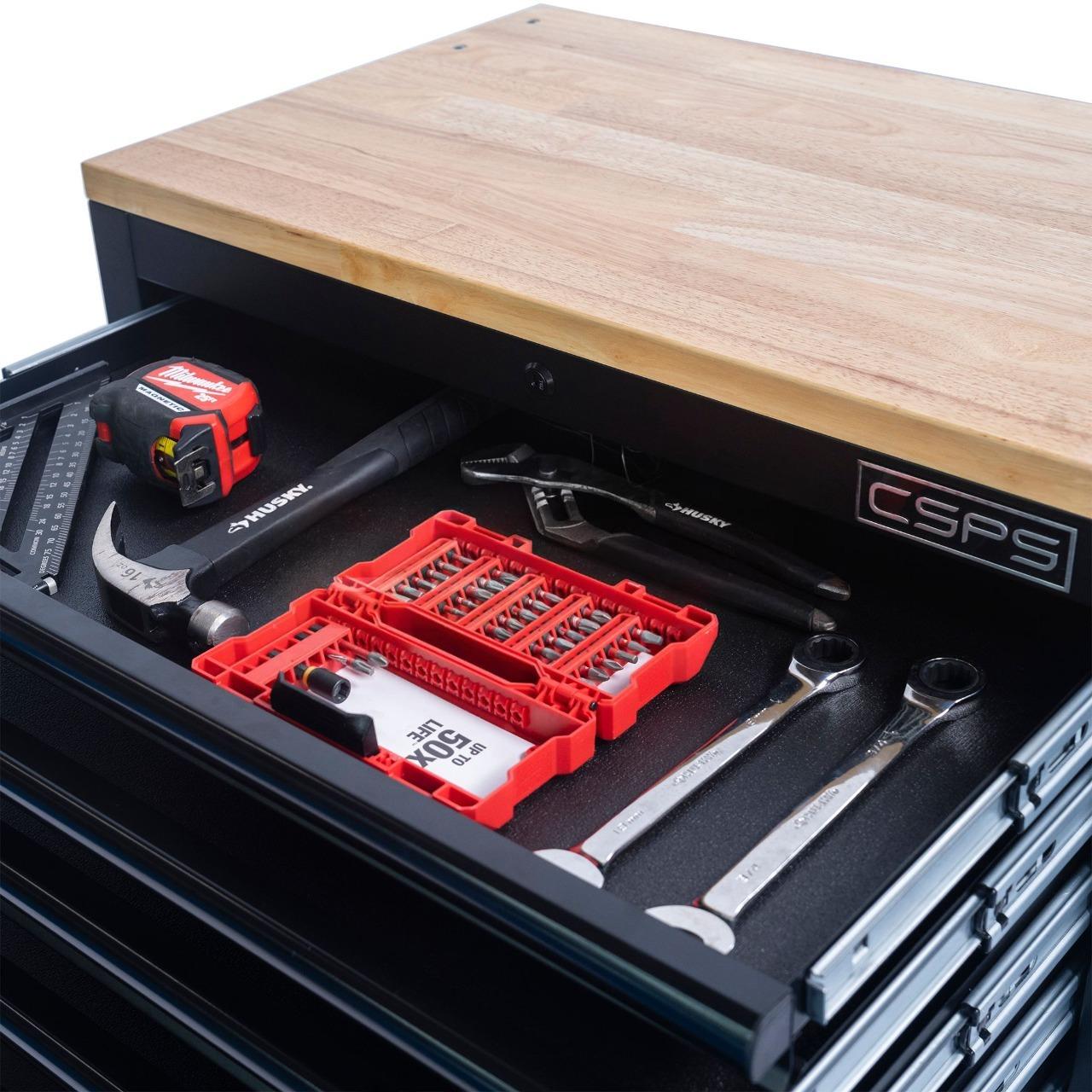

• Worktop: Premium wood, 25.4 mm thick

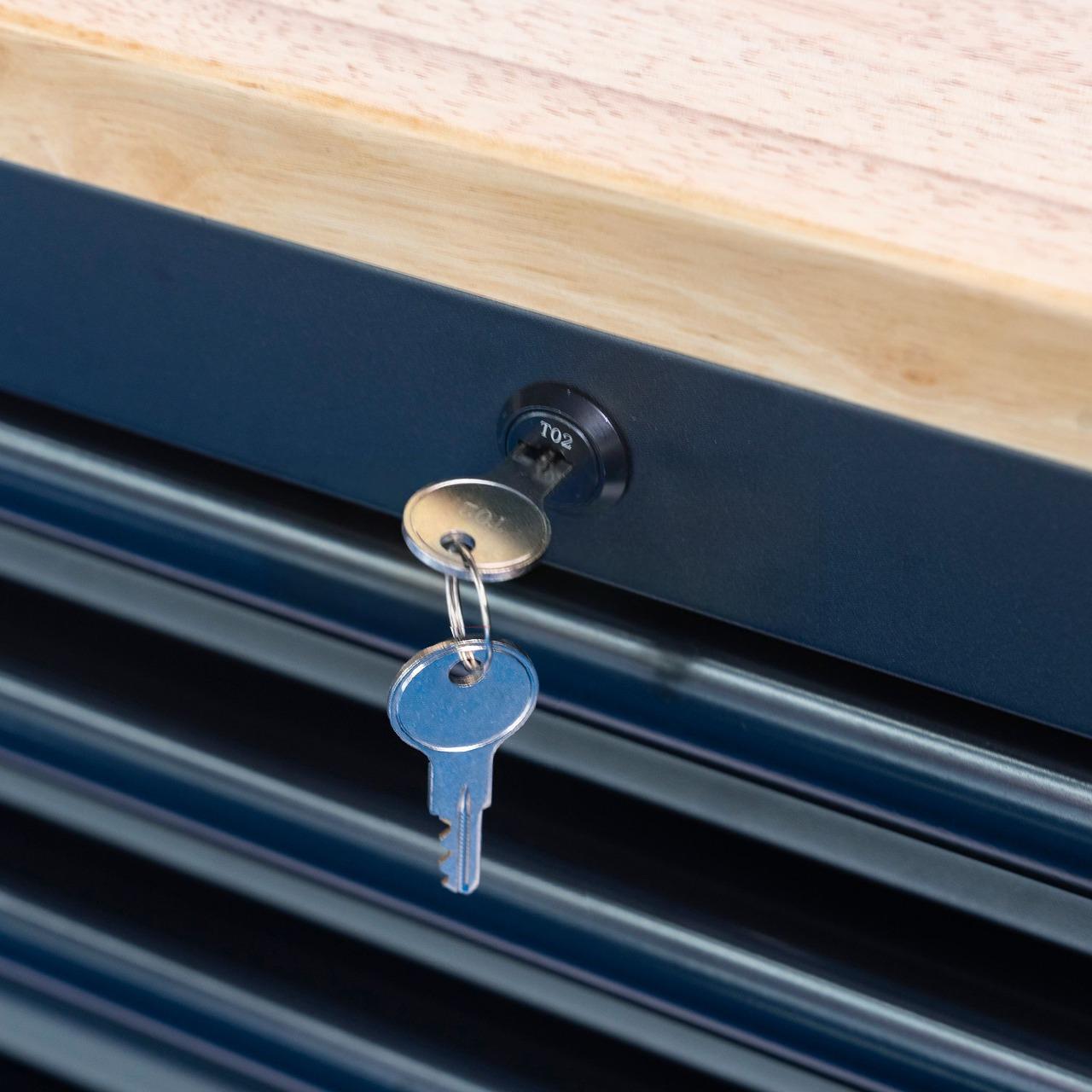

• Lock: Secure drawer lock (pull-out force ≥ 45 kgf)

• Coating: Matte black, powder coating technology – Coating durability: 10 years

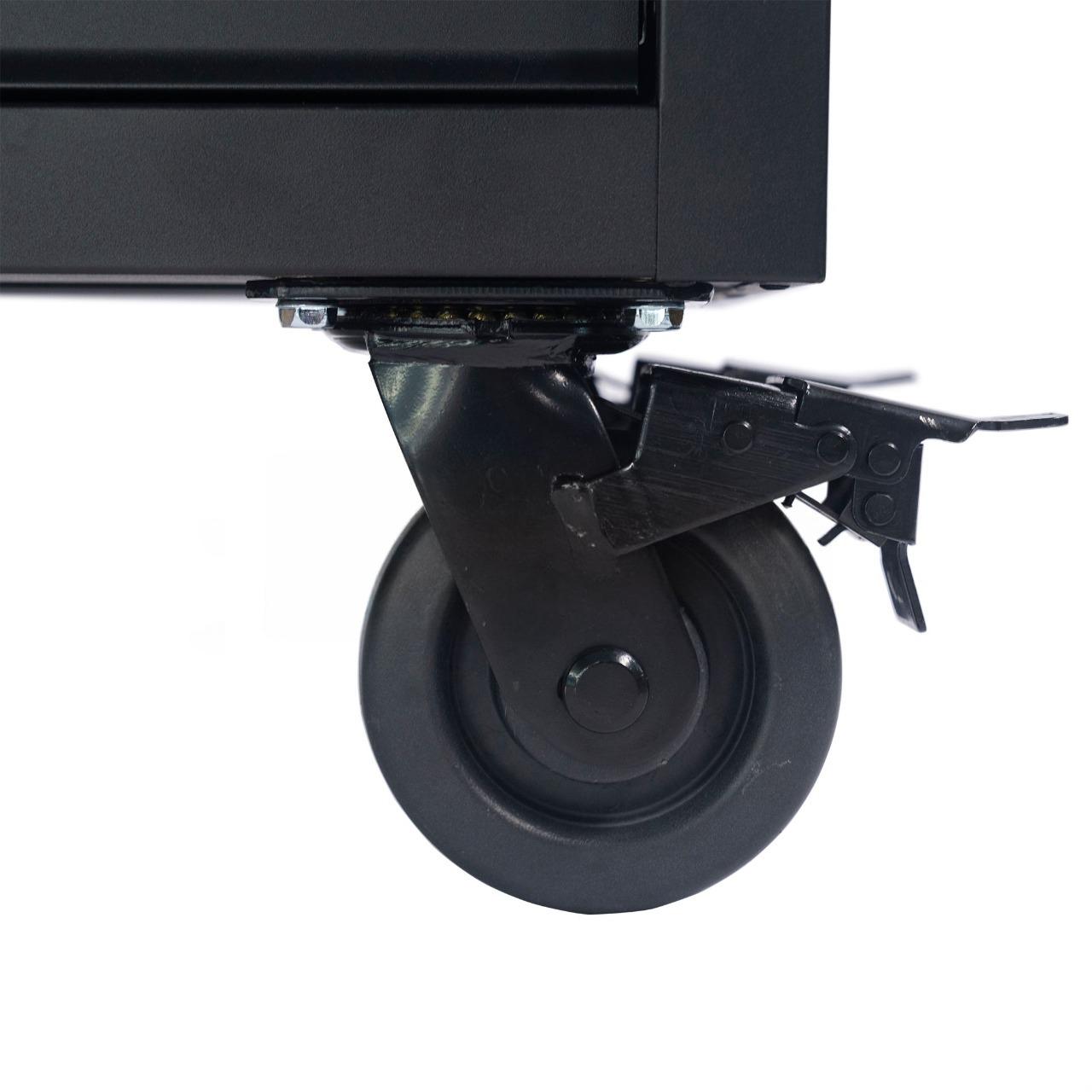

• Casters: 2 fixed wheels & 2 swivel wheels (with brake)

• Load capacity: 1000 kg

4. STANDARDS

Appearance:

• 16 CFR 1500.48/1500.49 – Sharp point test

• 16 CFR 1303 – Lead-containing paint test

Coating:

• ASTM B117 (mod.) & ASTM D610 (mod.) – Corrosion test

• ASTM D3363 (mod.) – Hardness test

• ASTM D2794 – Impact test

• ASTM D4752 – Solvent resistance rub test

• ASTM D3359 – Cross-cut tape test

Steel:

• ASTM A1008 – Standard specification for steel

Function:

• ANSI/BIFMA X 5.9 – Storage unit test (static load, dynamic loading, durability testing)

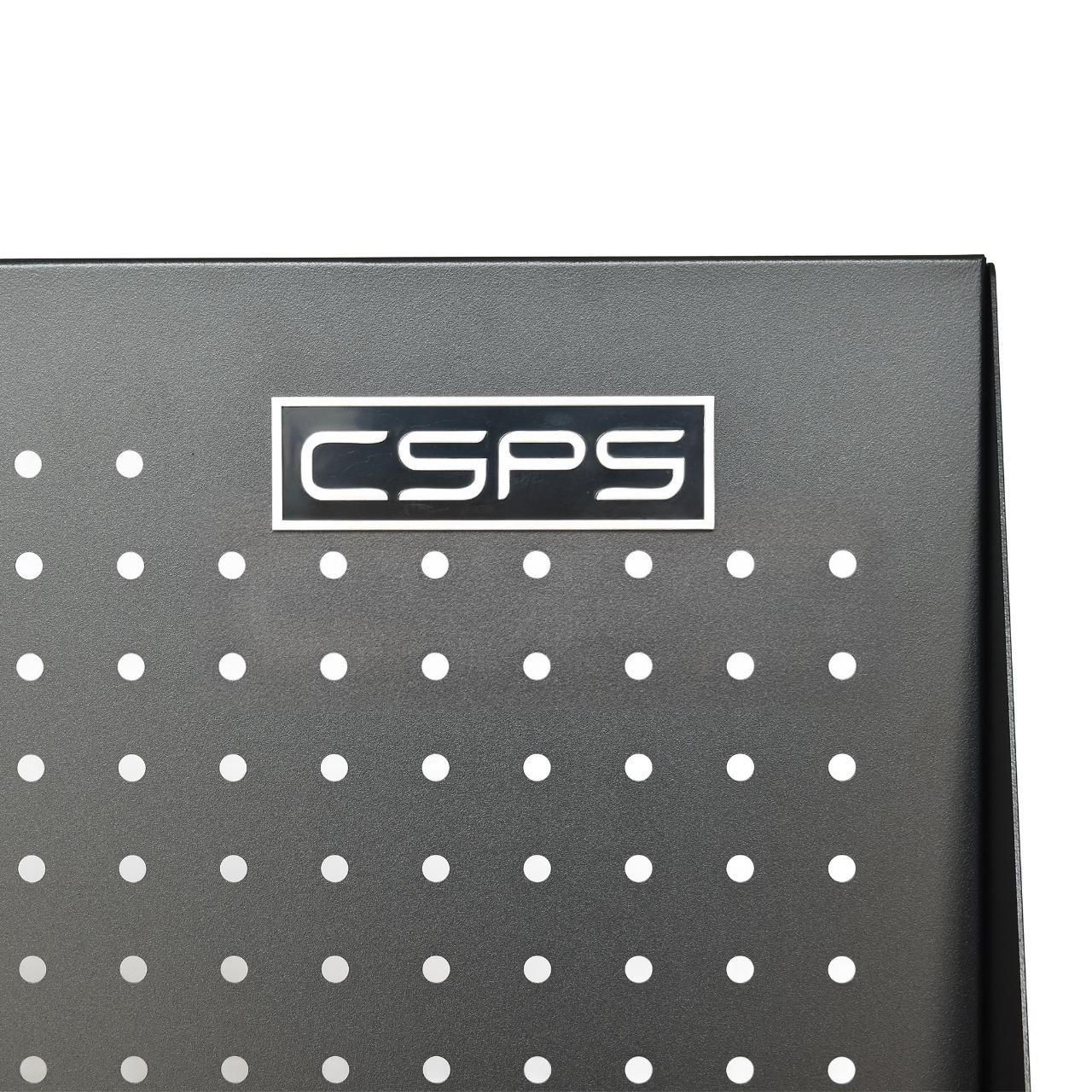

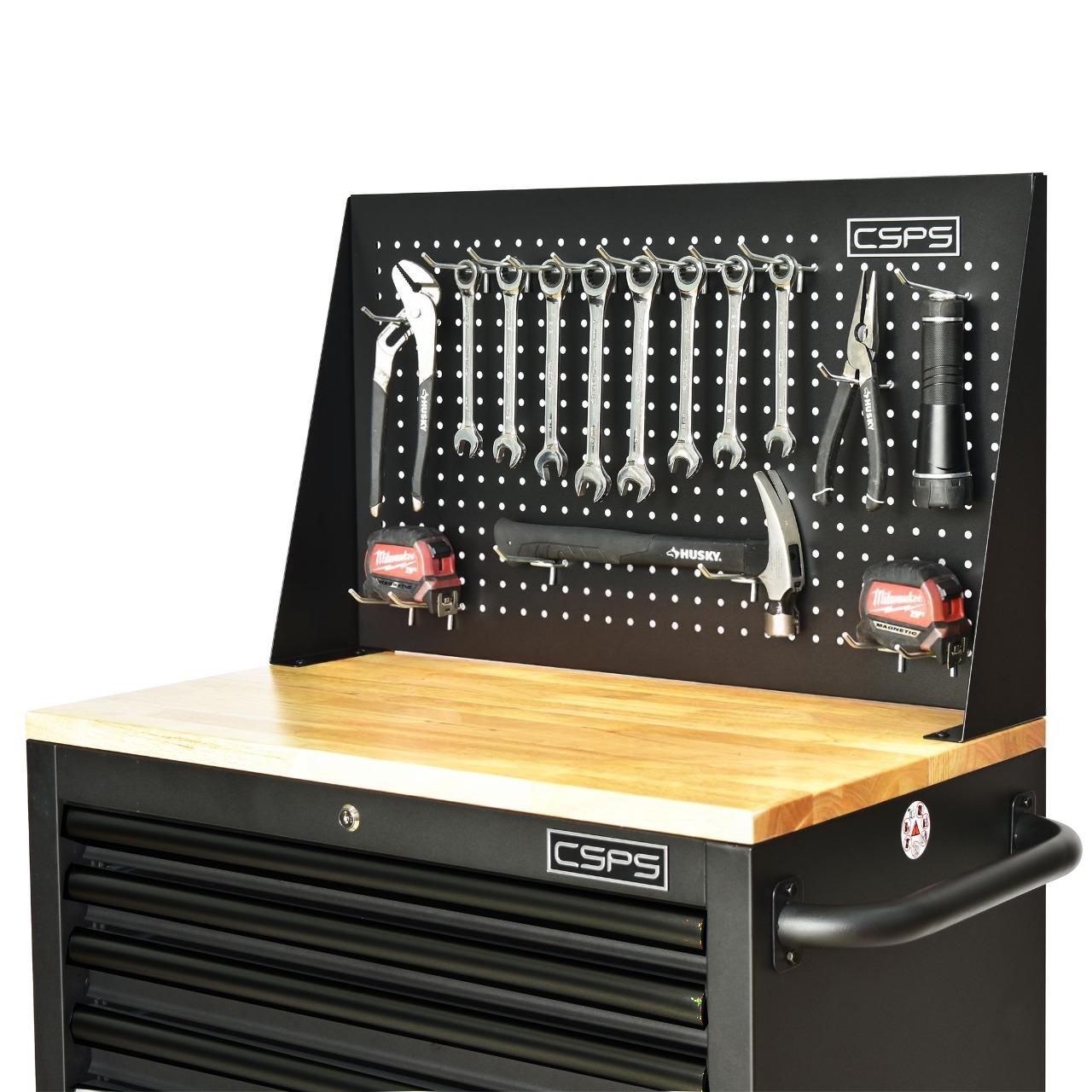

5. PEGBOARD SPECIFICATIONS

• Package dimensions: 78.5 cm (W) x 48 cm (D) x 6 cm (H)

• Gross weight: 3.9 kg

• Product dimensions: 76 cm (W) x 14 cm (D) x 46 cm (H)

• Net weight: 3 kg

• Warranty: 2 years
