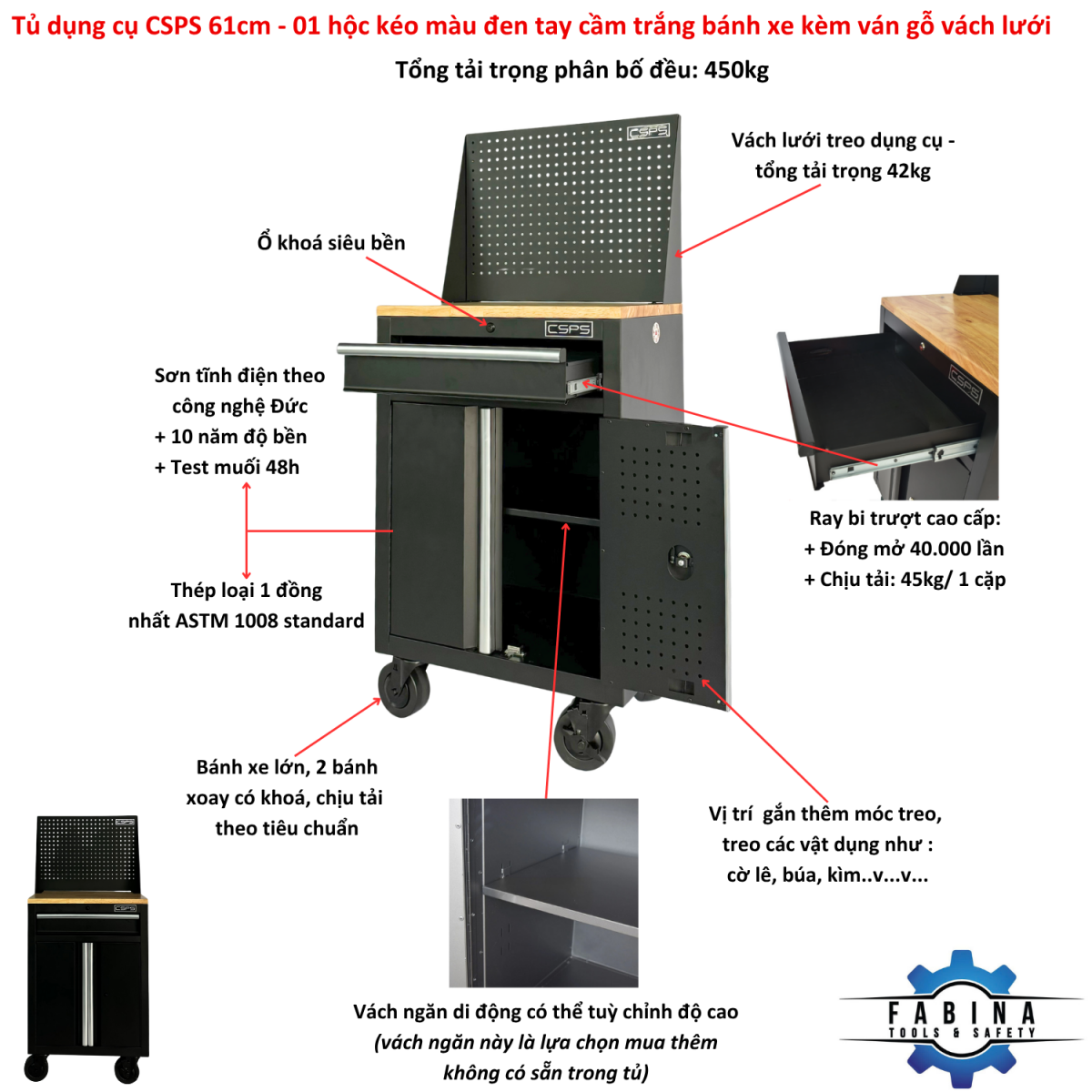

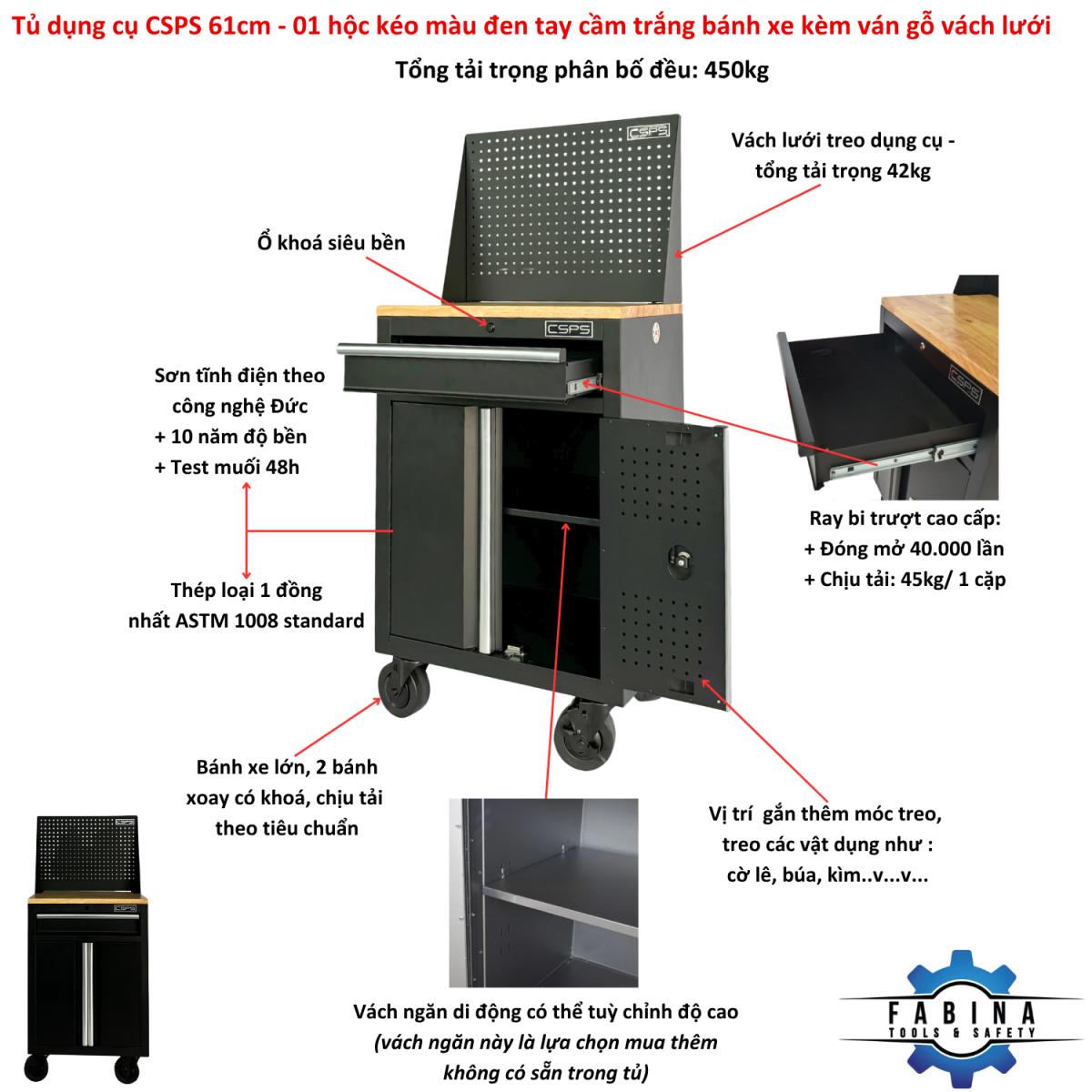

Tool cabinet CSPS 61cm - 01 black drawer with wooden wheels and mesh wall (white handle)
TECHNICAL SPECIFICATIONS:
1. GENERAL SPECIFICATIONS :
Package dimension: 69cm W x 49cm D x 83cm H

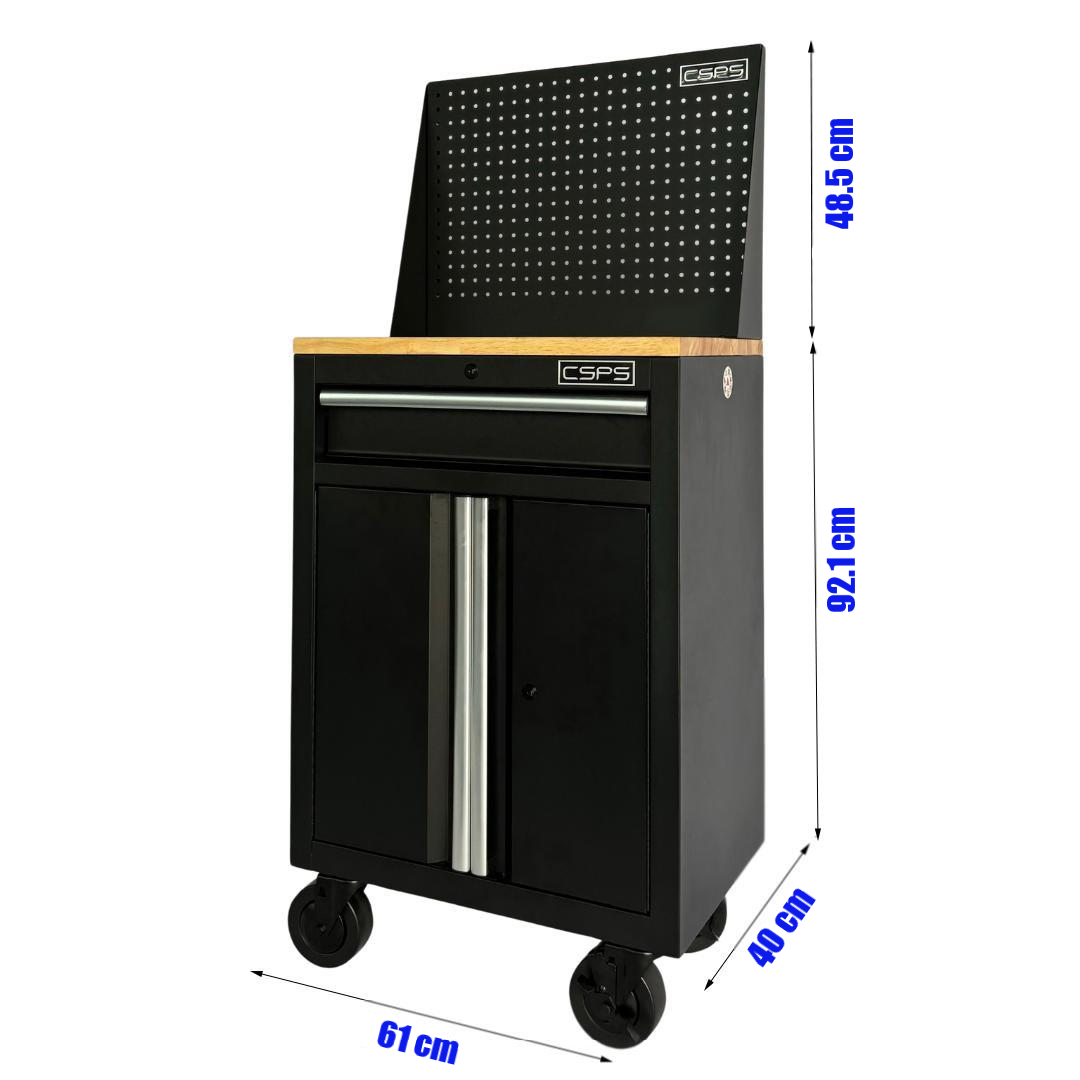

Product dimension: 61cm W x 40.5cm D x 140.6cm H (Including the height of the wheels and mesh wall)
Net weight: 37.5kg
Warranty: 2 years.
2. CAPACITY
Overall capacity: Total: 450 kg
Drawers:
+ Quantity: 01
+ Using 3-layer ball bearing slides.
+ Load capacity: 45 kg/drawer.
+ Usage cycle: 40,000 times.
3. OTHERS
Coating:
Color: Matt Black
Powder coating technalogy.
Coating durability: 10 years.
Lock:
Drawers lock: 01.
Locking force: minimum 45 kg.
Wheels:
2 fixed casters & 2 swivel casters (with locks).
2 Rigid casters & 2 swivel casters (with brakes).
4. STANDARDS
Appearance: 16 CFR 1500.48/1500.49 (Scope widened): sharp point test.
16 CFR 1303: lead-containing paint test.
Coating: ASTM B117 (mod.) & ASTM D610 (mod.): corrosion test.
ASTM D3363 (mod.): hardness test.
ASTM D2794: impact test.
ASTM D4752: Solvent resistance rub test.
ASTM D3359: Cross-cut tape test.
Steel: ASTM A1008: standard specification for steel.
Function: ANSI/BIFMA X 5.9: Storage unit test – Static load loading; dynamic loading; durability testing
Authorized Distributor Certificate:
