1 GENERAL SPECIFICATIONS

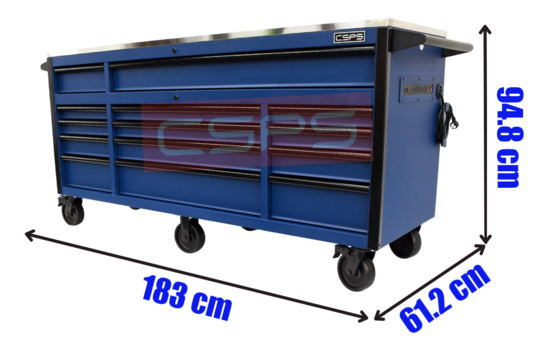

Product dimension: 183cm W x 61.2cm D x 94.8cm H
Net weight: 193.2 kg
Warranty: 02 years.
2. CAPACITY
Overall capacity: 1720 kg.
Drawers: Quantity: 14
Soft - Close Ball bearing Drawer slides.
Capacity: 45 kg/drawer.
Usage cycle: 40,000 times.
3 OTHERS
Locks:
Drawers lock: 01. Lock release force: minimum 45 kg.
Aluminum handle with locking system.
Coating: Matte Blue
Powder coating technology
Coating durability: 10 years
Casters:
04 swivel casters (with brakes).
02 fixed casters.
4 STANDARDS
Appearance
16 CFR 1500.48/1500.49 (Scope widened): sharp point test.
16 CFR 1303: lead-containing paint test
Coating:
ASTM B117 (mod.) & ASTM D610 (mod.): corrosion test.
ASTM D3363 (mod.): hardness test.
ASTM D2794: impact test.
ASTM D4752: Solvent resistance rub test.
ASTM D3359: Cross-cut tape test.
Steel/Steel:
ASTM A1008: standard specification for steel.
Function
ANSI/BIFMA X 5.9: Storage unit test – Static load loading; dynamic loading; durability testing.

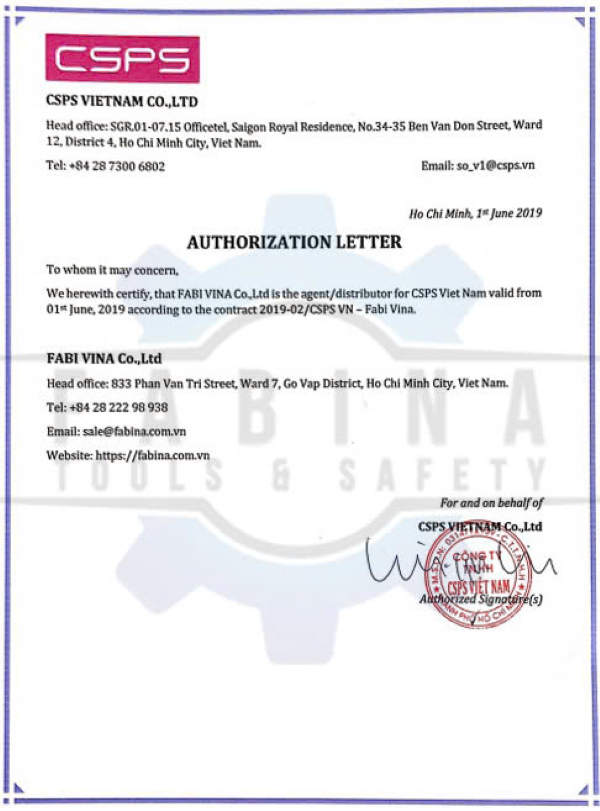

Authorized Distributor Certificate:
