Product Introduction :

Pliers length: 225 mm
Weight: 280gr
Cutting blade: Capable of more than 30,000 cuts with a hardness of up to 64 HRC
Standard: Complies with IEC 60900 insulation standard

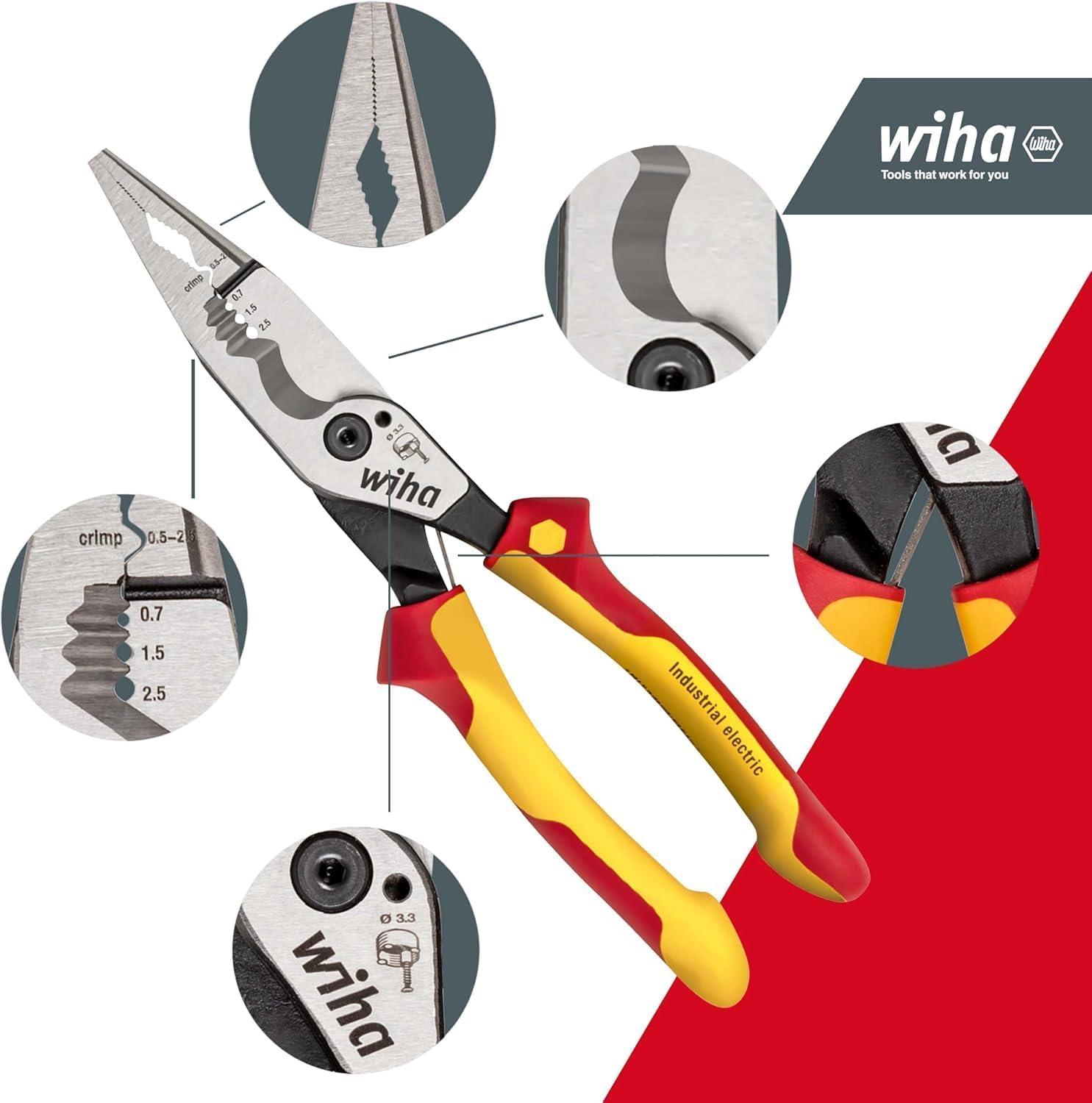

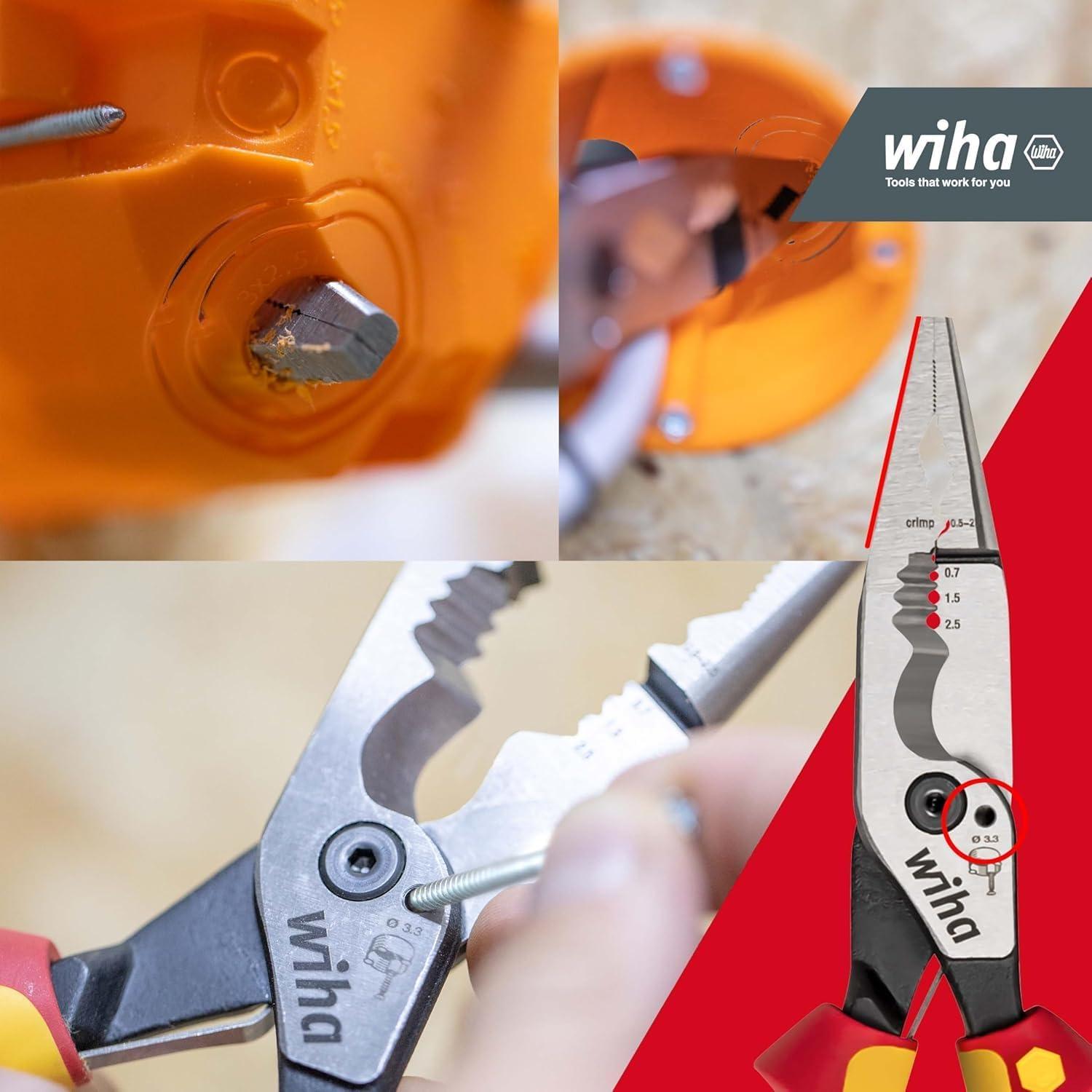

Applications – 8 Functions in 1

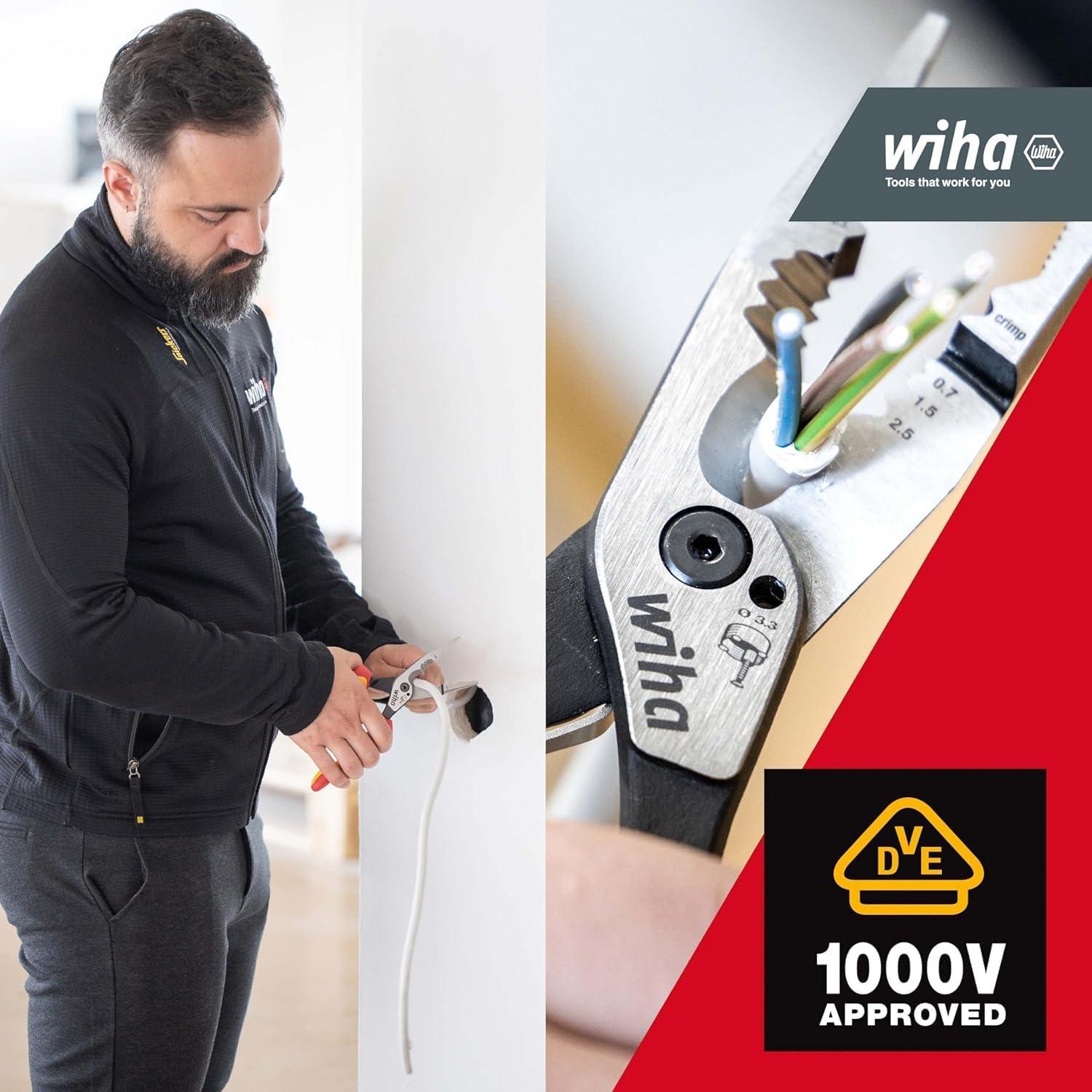

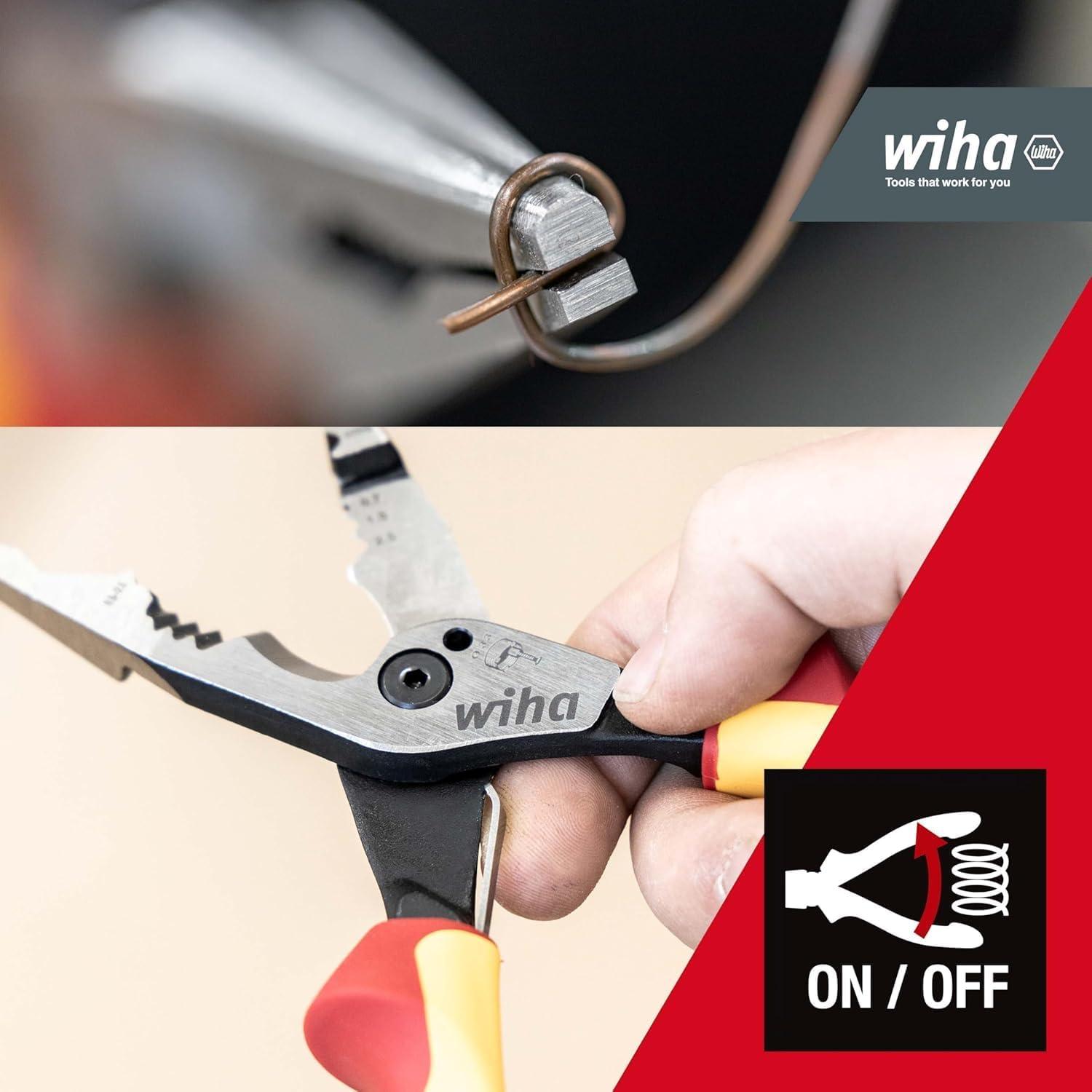

• Bending wires and creating eyelets during electrical installation

• Deburring plastic components, e.g., inside electrical wall boxes

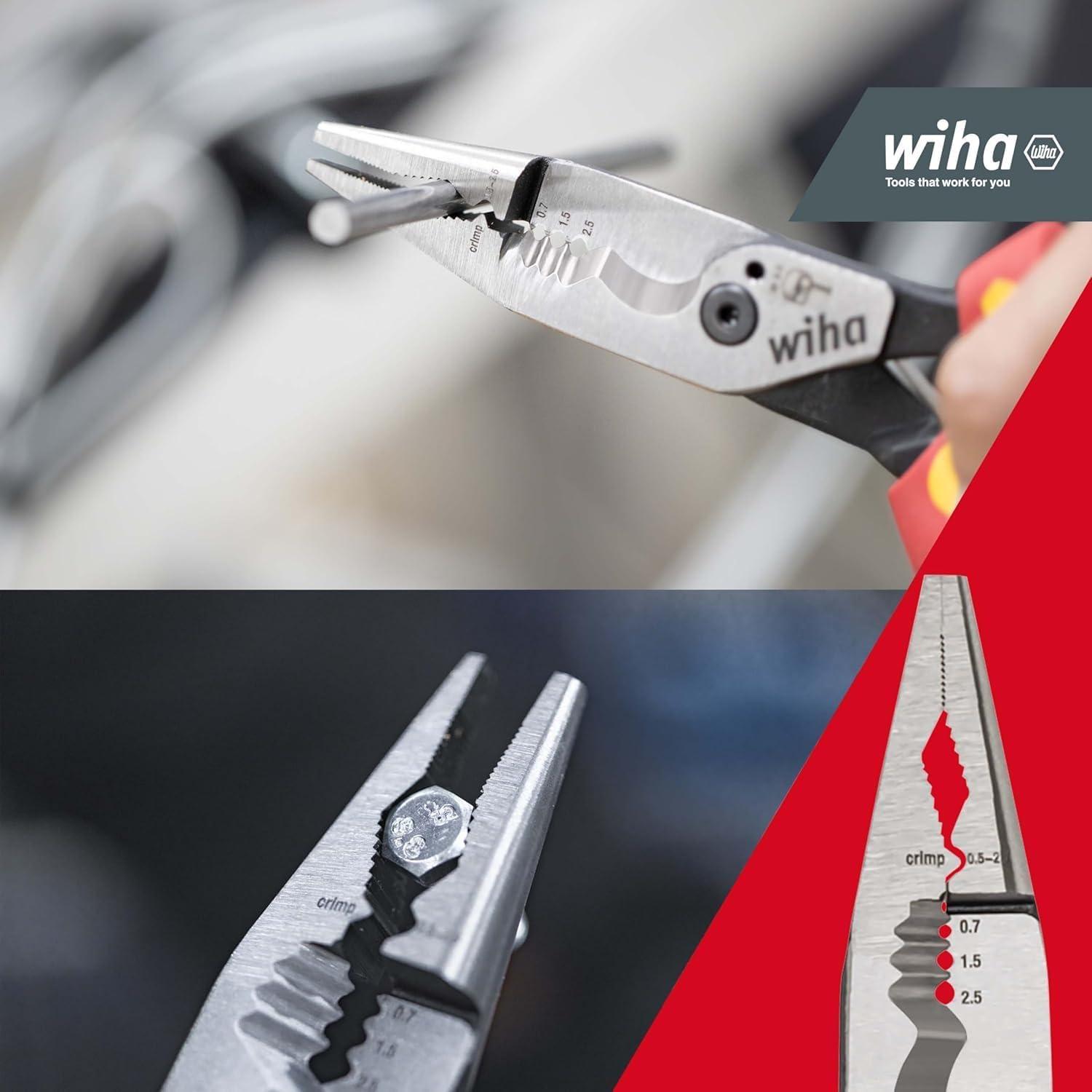

• Gripping and holding round objects, pipes, or hex nuts

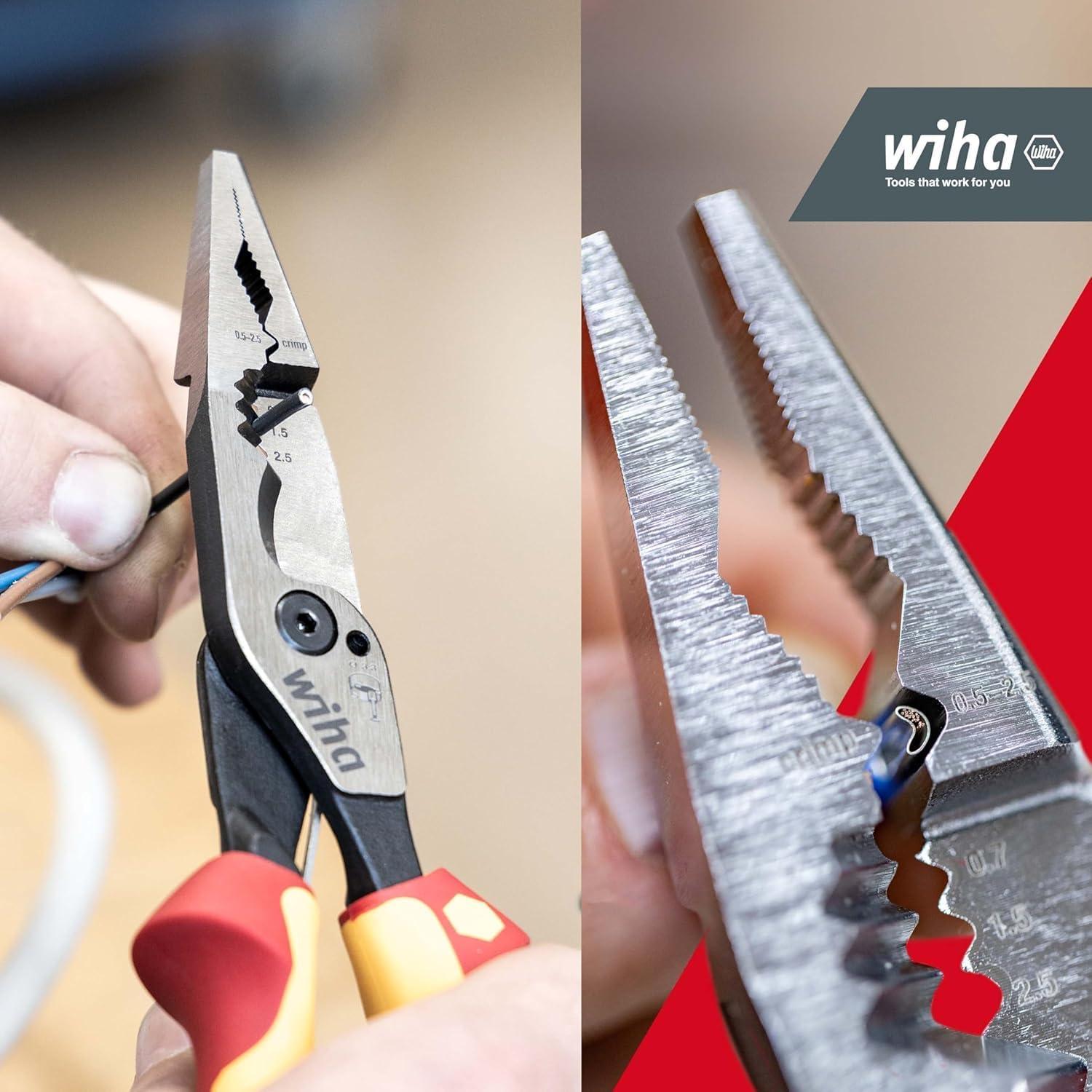

• Cutting wires, stripping insulation, crimping terminals, cutting screws – fully supporting all tasks of an electrician

• Wire stripping range (mm²): 0.75 – 2.5 mm²

• Wire stripping range (AWG): 20 – 14

• Crimping range: 0.5 – 2.5 mm²

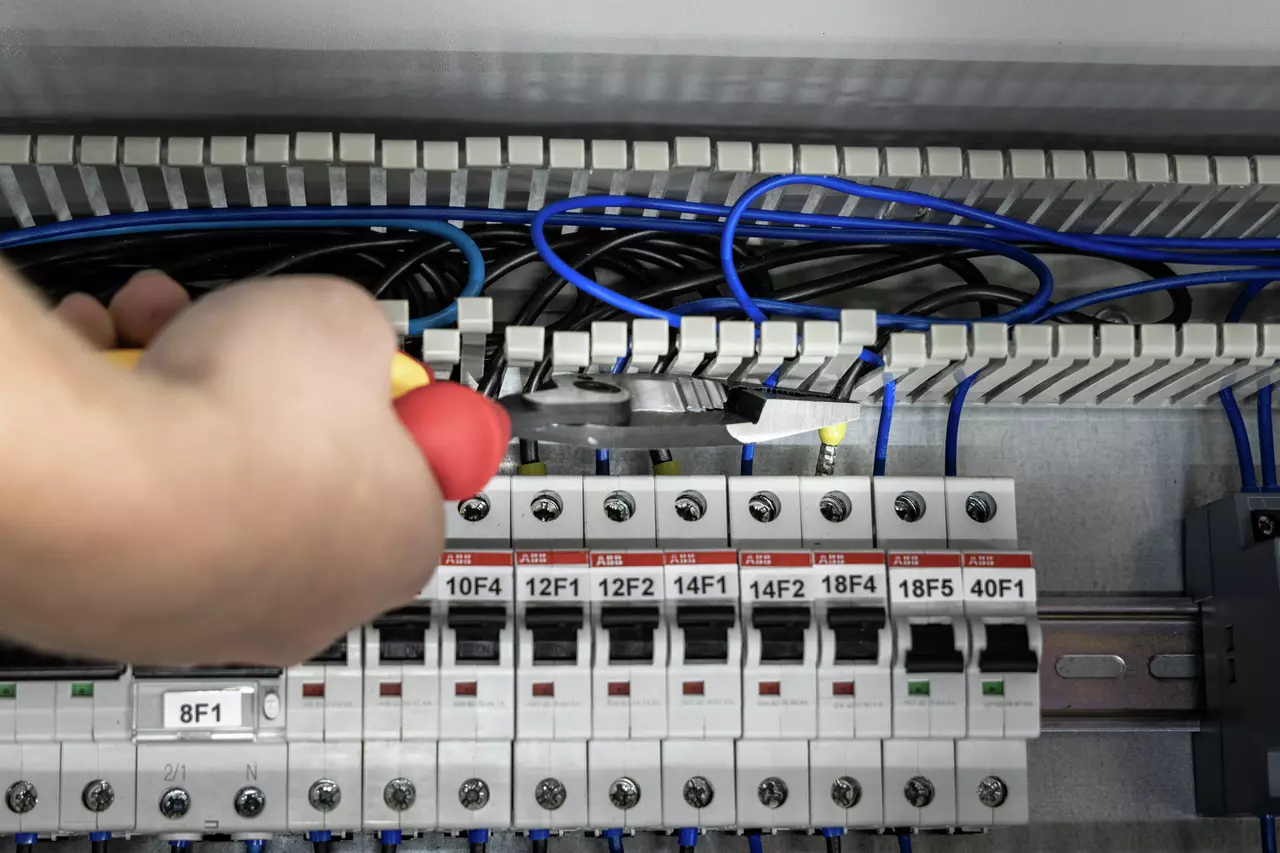

• Suitable for working in environments with voltages up to 1,000 V AC

Key Features

• The pliers are made from S70C carbon alloy steel with a high carbon content for enhanced durability and are coated with manganese phosphate.

• Flat jaws prevent scratching on clamped objects and make it easier to work in confined spaces.

• Precision cutting blades designed for copper and aluminum cables up to Ø15 mm or 5 × 2.5 mm².

• Ergonomically designed handles provide maximum comfort, minimizing wrist strain during extended or repetitive tasks.

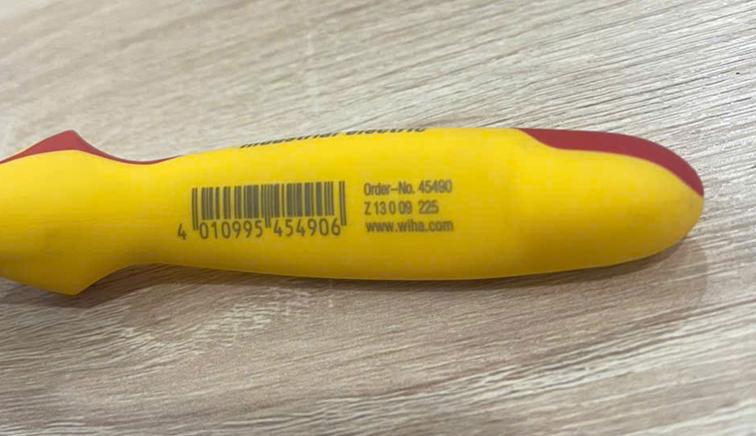

• The rubber handle is directly molded onto the plier body for a strong, secure bond; raised anti-slip ridges at the front and back protect the fingers and improve grip.

• Handles withstand pulling forces up to 500N, preventing slipping or detaching from the plier body.

• The Wiha 45490 belongs to Wiha’s Professional Electric line. All pliers are tested and certified to the IEC 60900 insulation standard, ensuring user safety when working in electrical environments up to 1,000 V AC.
