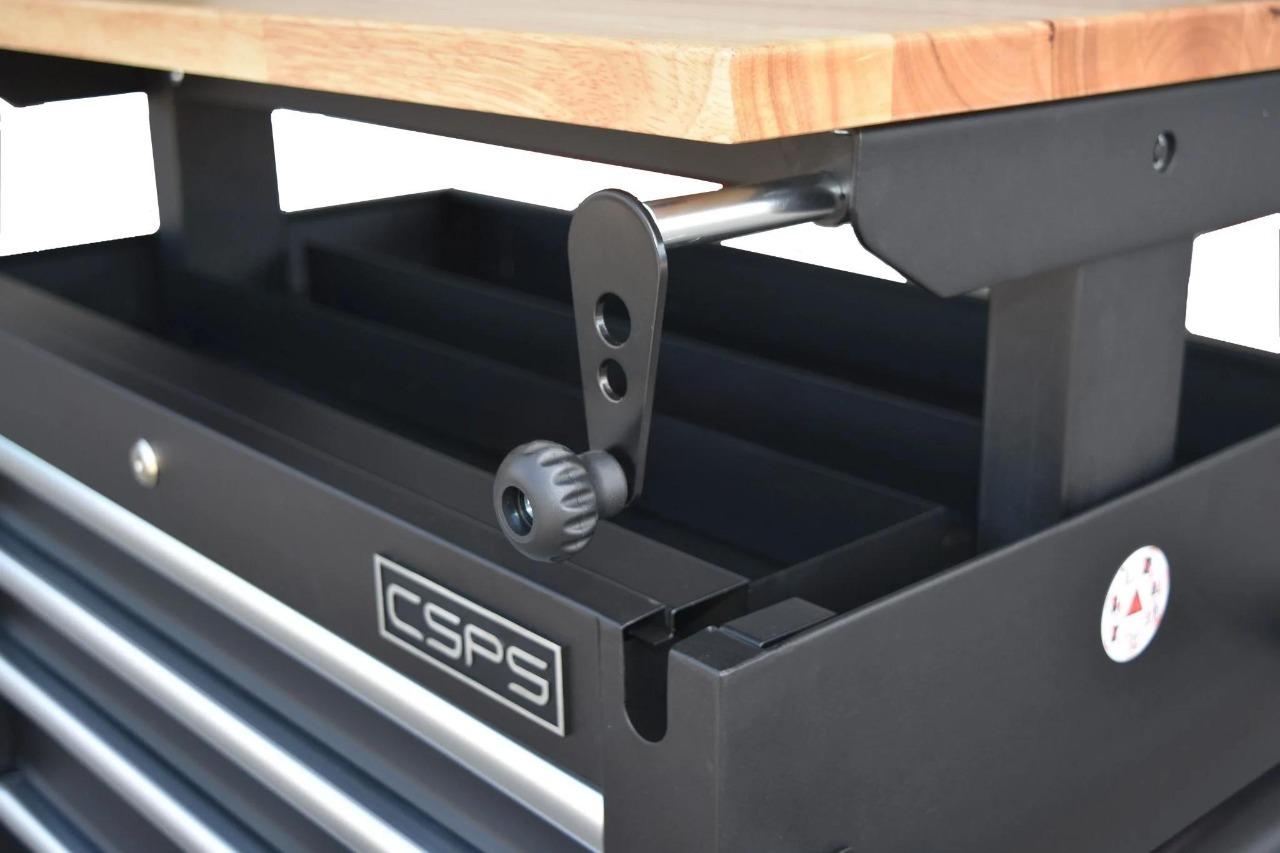

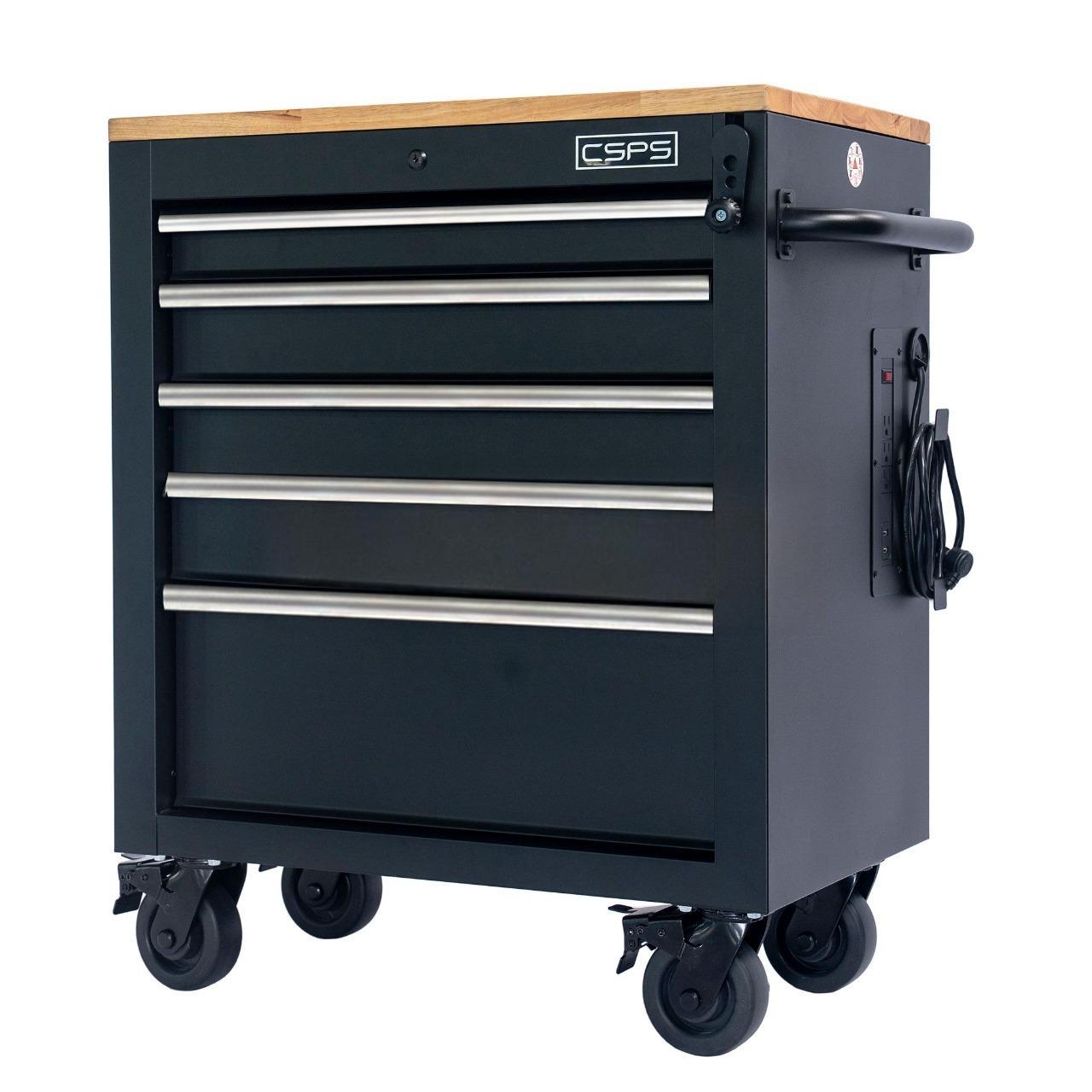

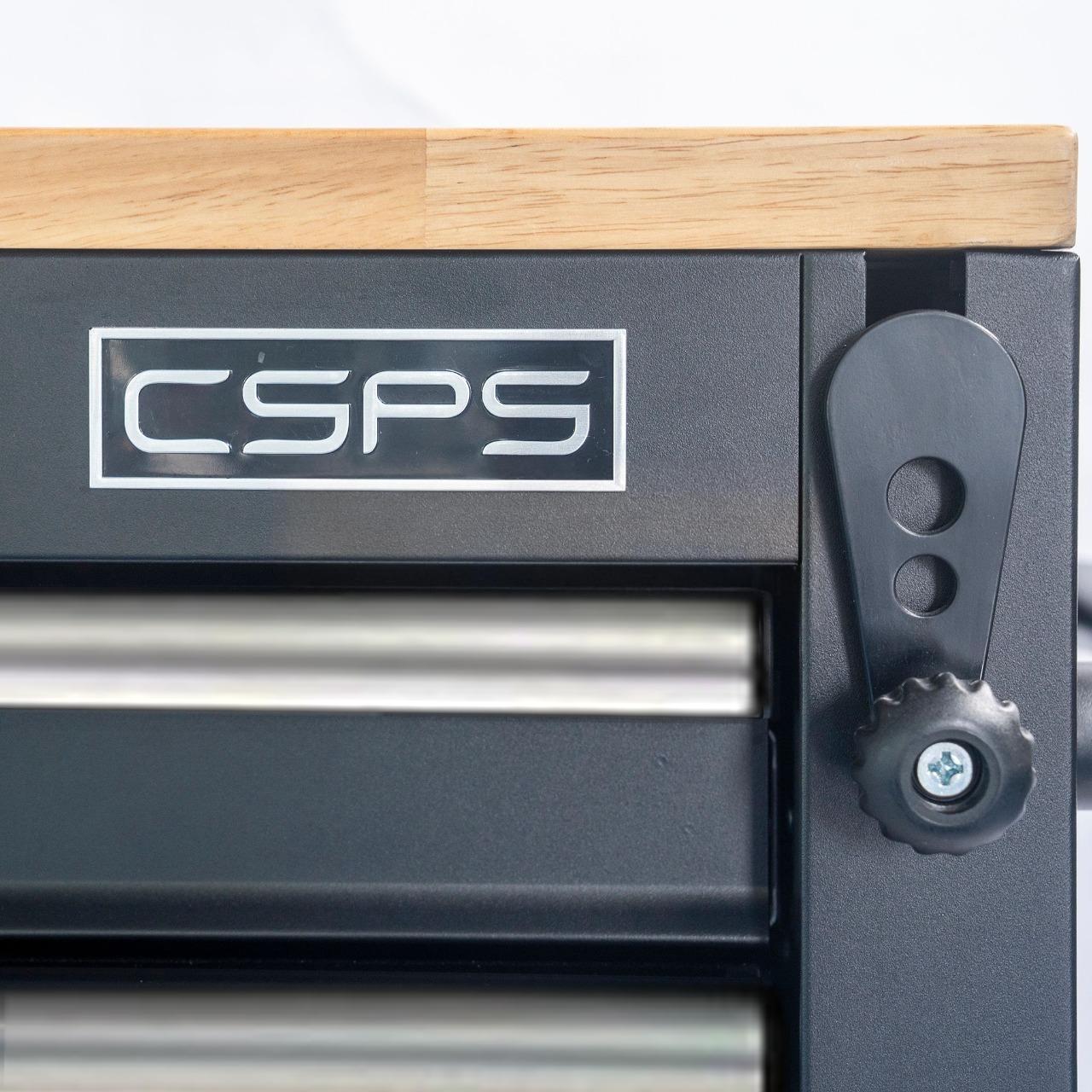

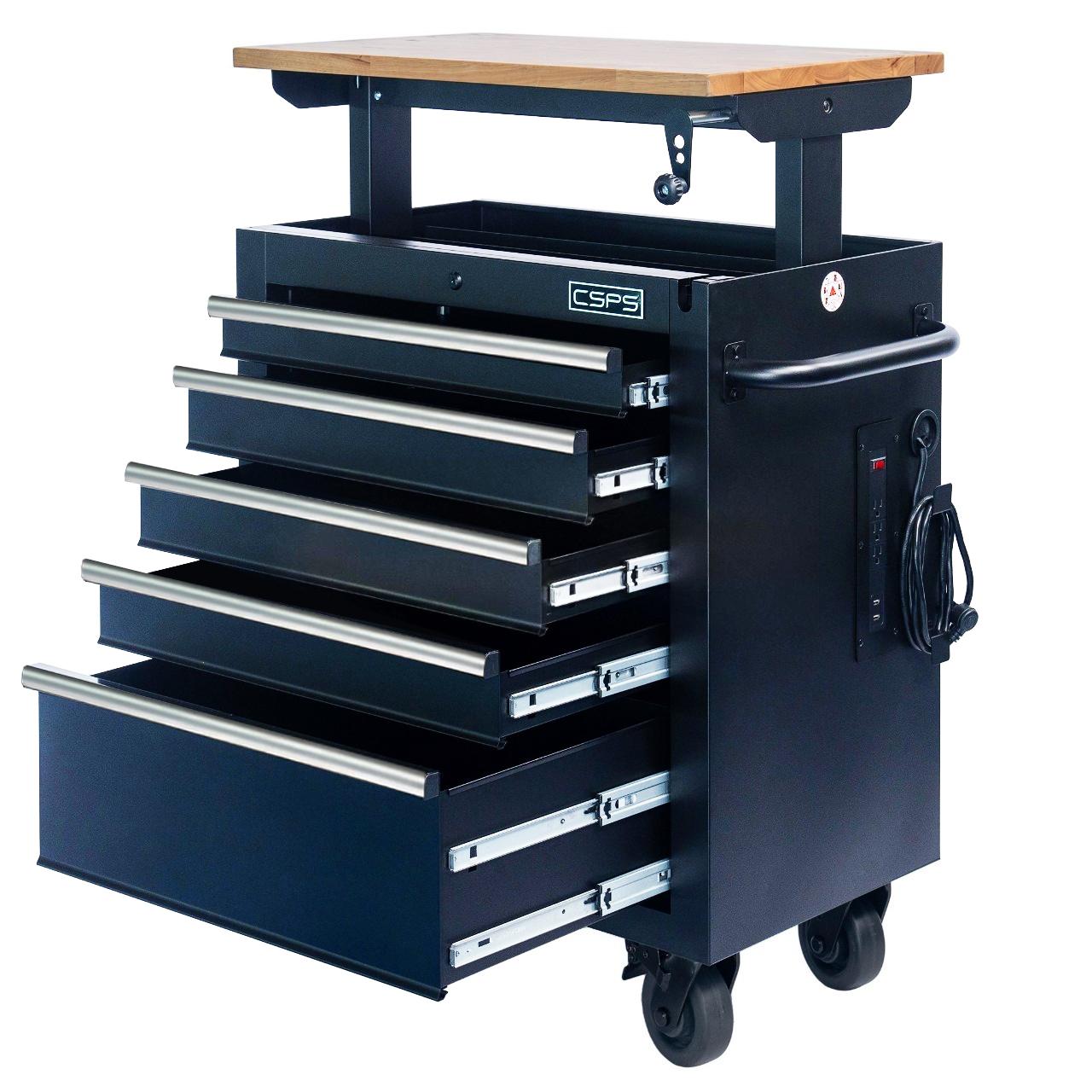

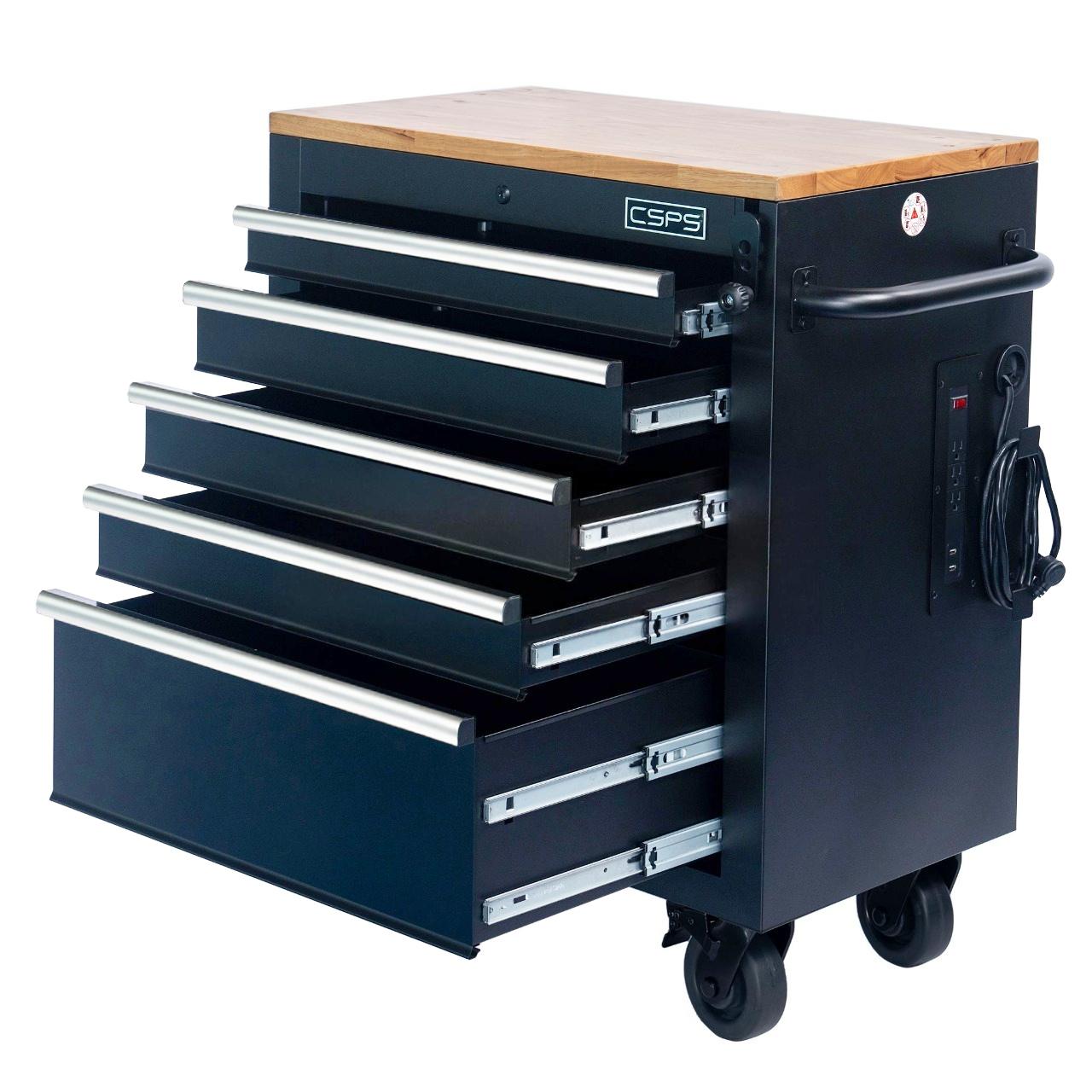

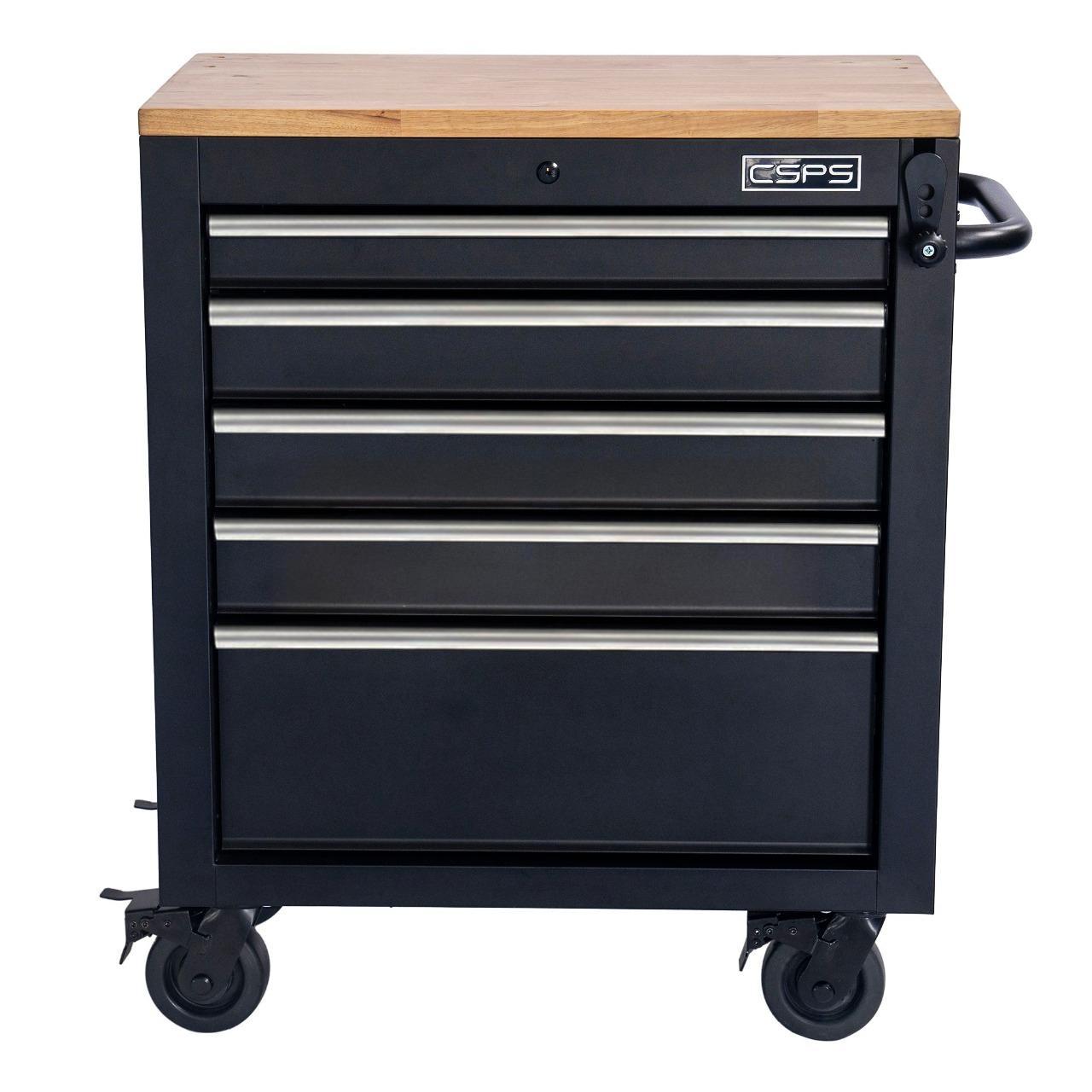

CSPS Tool Cabinet 76 cm with Lift-up Top – 05 drawers (white handles)

1. GENERAL SPECIFICATIONS

• Package dimension: 79cm W x 49cm D x 82cm H

• Gross weight: 73kg

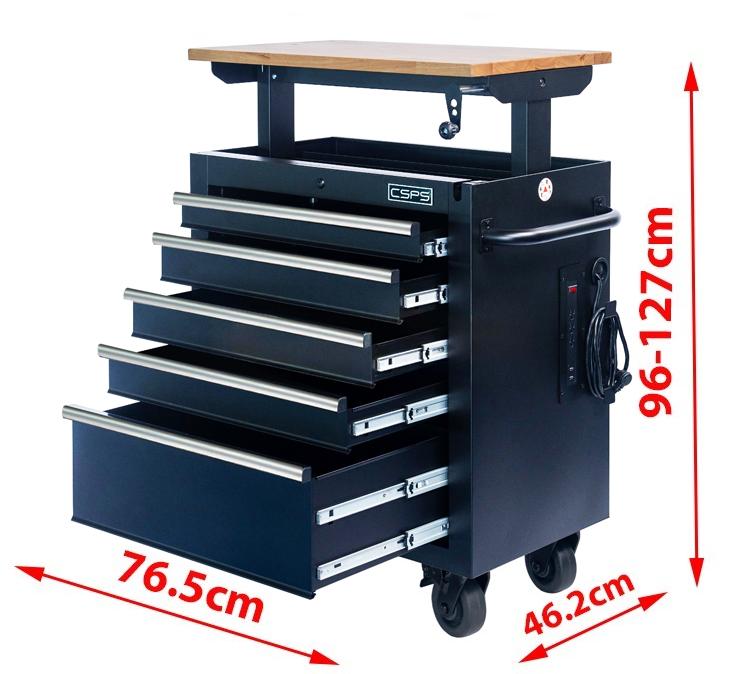

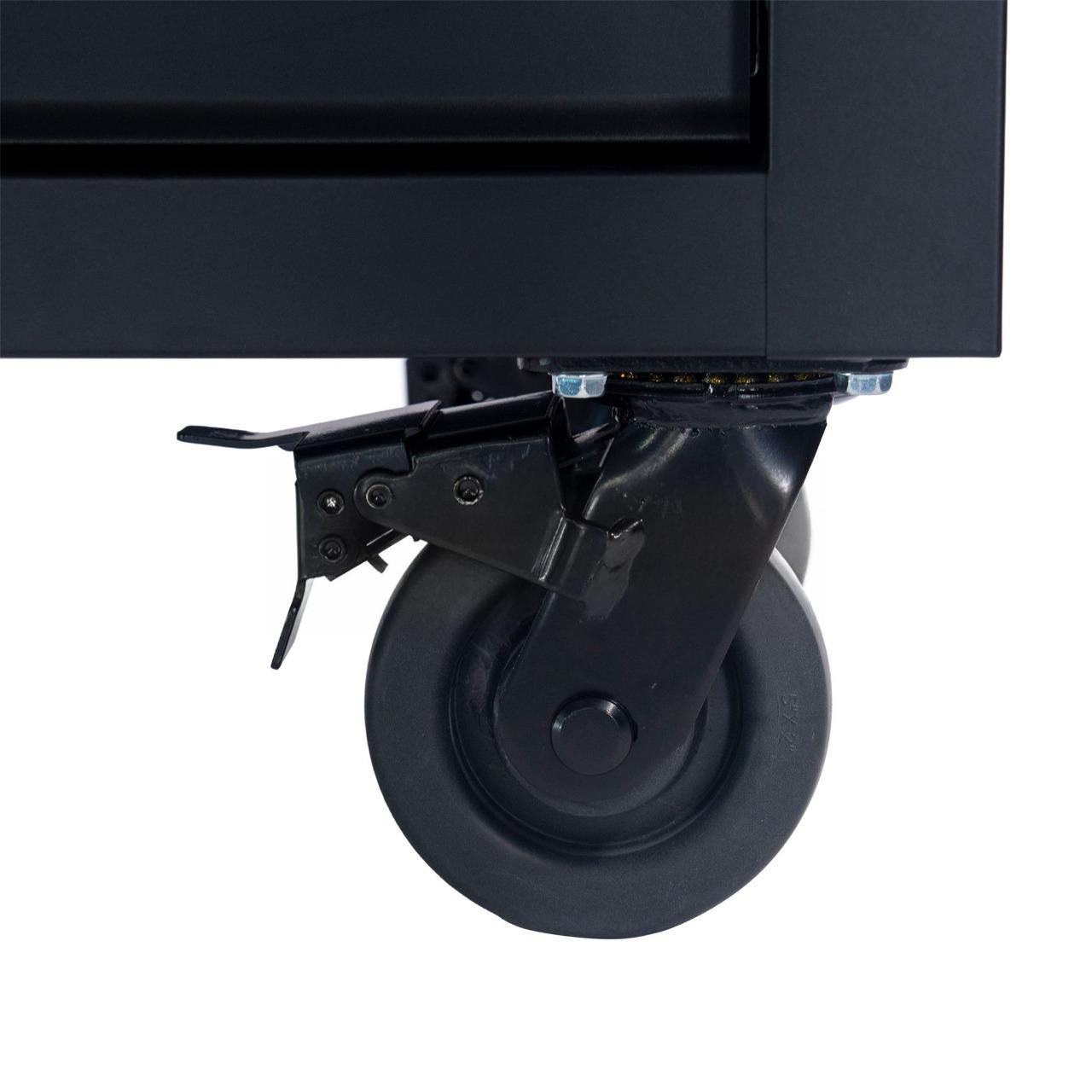

• Product dimension: 76.5cm W x 46.2cm D x 96 - 127cm H (including caster height)

• Net weight: 69.6kg

• Warranty: 2 years

2. CAPACITY

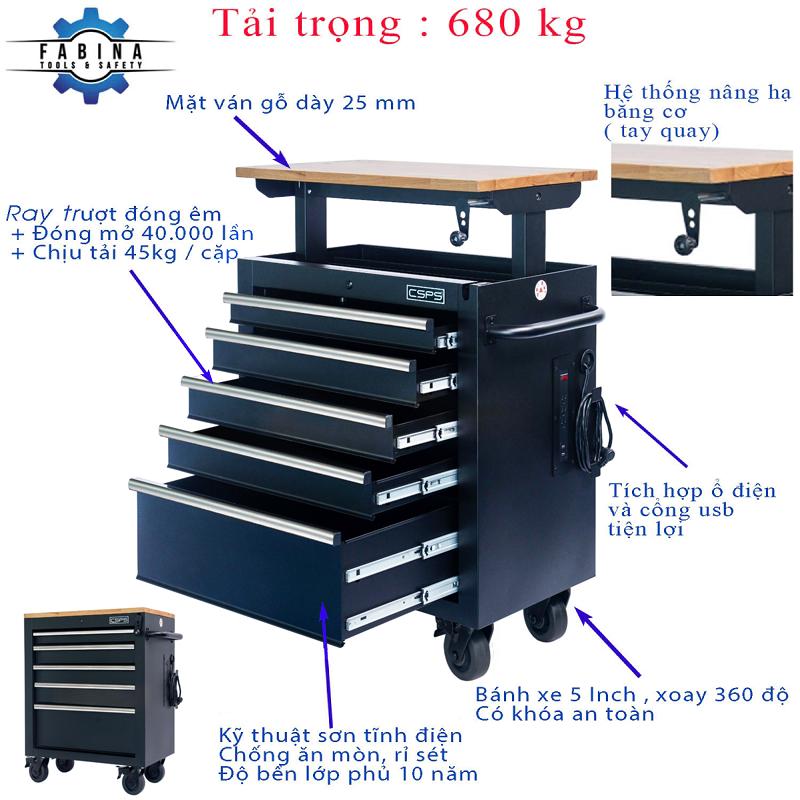

• Overall capacity: 680kg

• Drawers: Quantity: 05
  • Small drawers: 45kg per drawer, Quantity: 04
  • Big drawer: 90kg per drawer, Quantity: 01

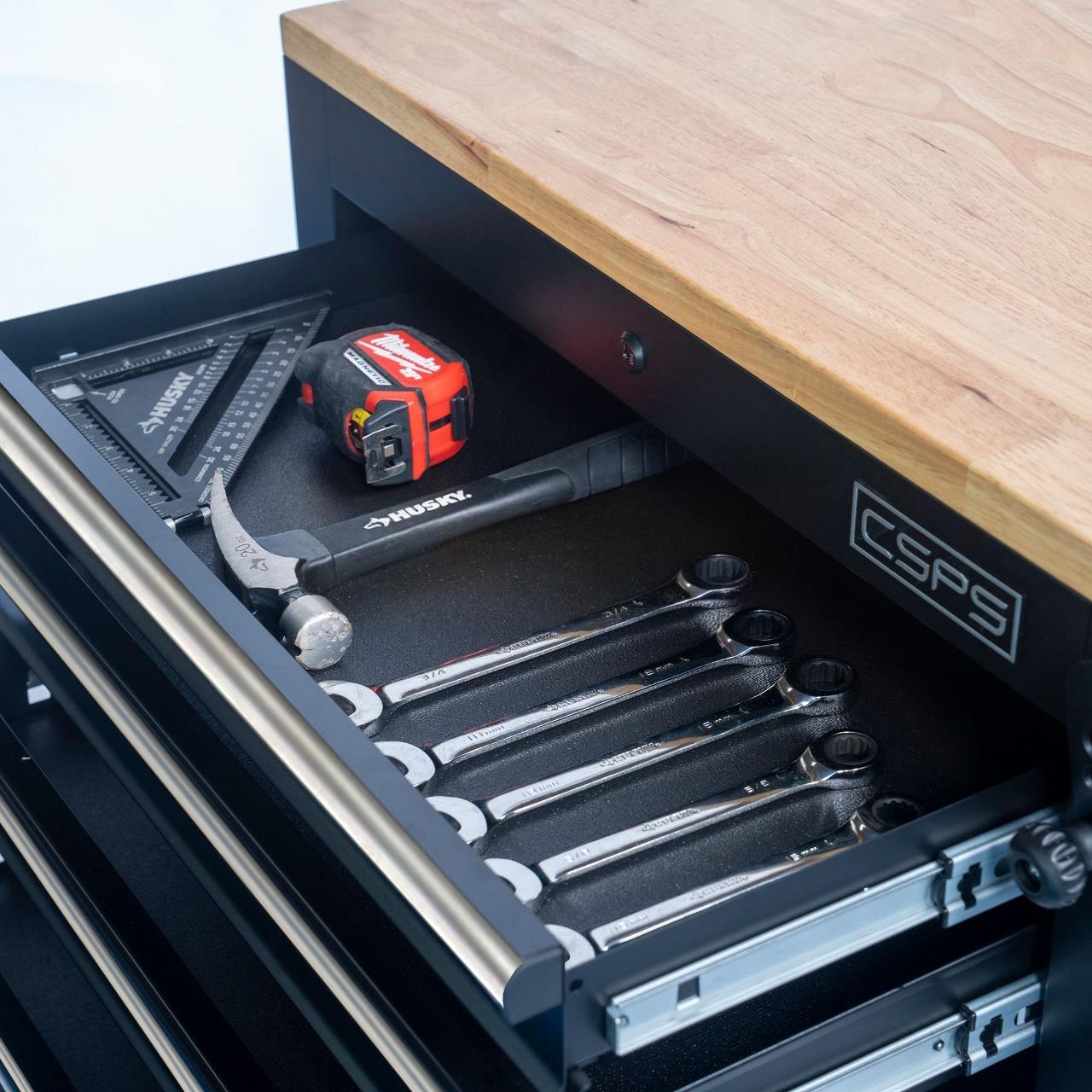

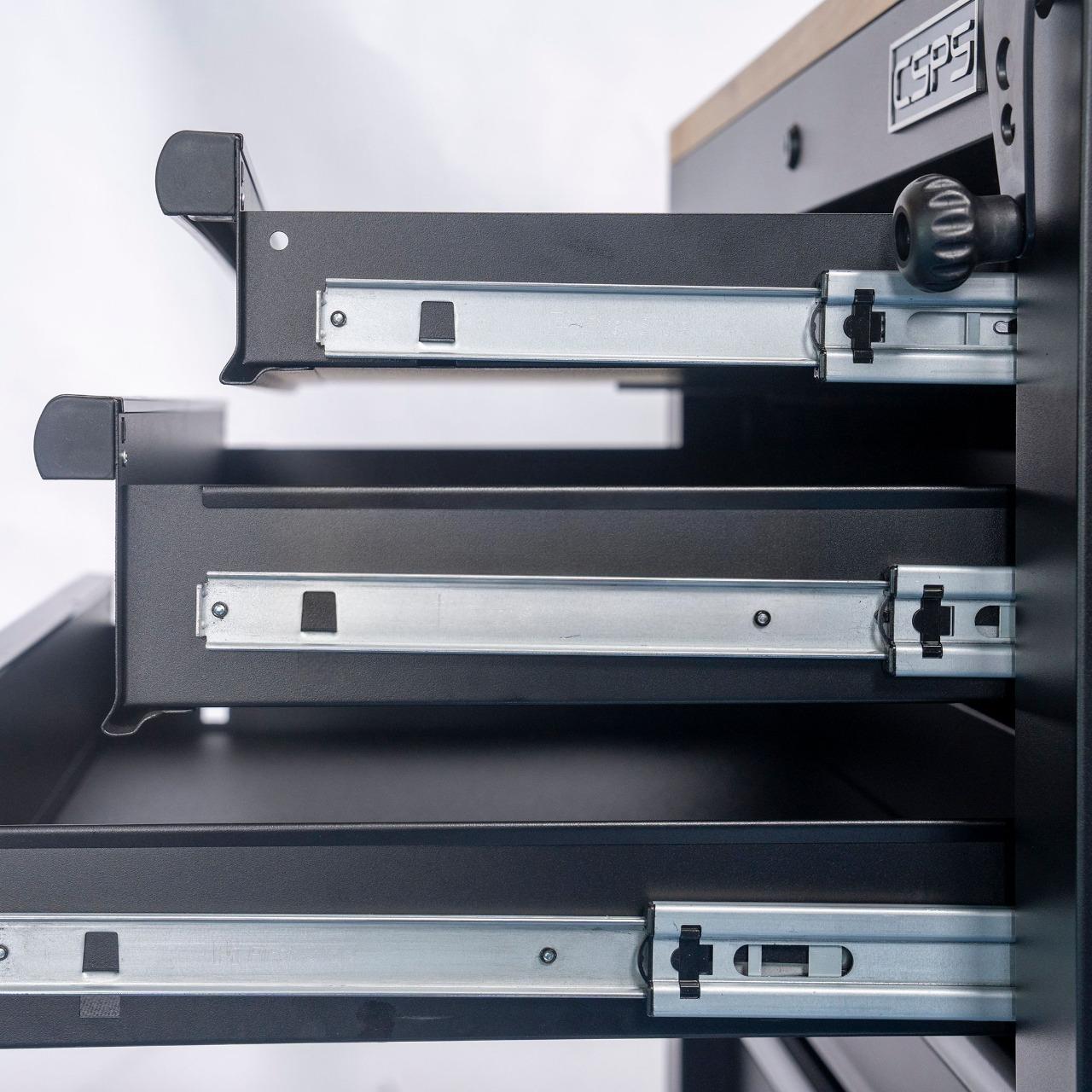

• Drawer slides: Soft-Close Ball Bearing Drawer Slides

• Usage cycle: 40,000 times

3. OTHERS

• Top wood: Solid wood

• Thickness: 2.5cm

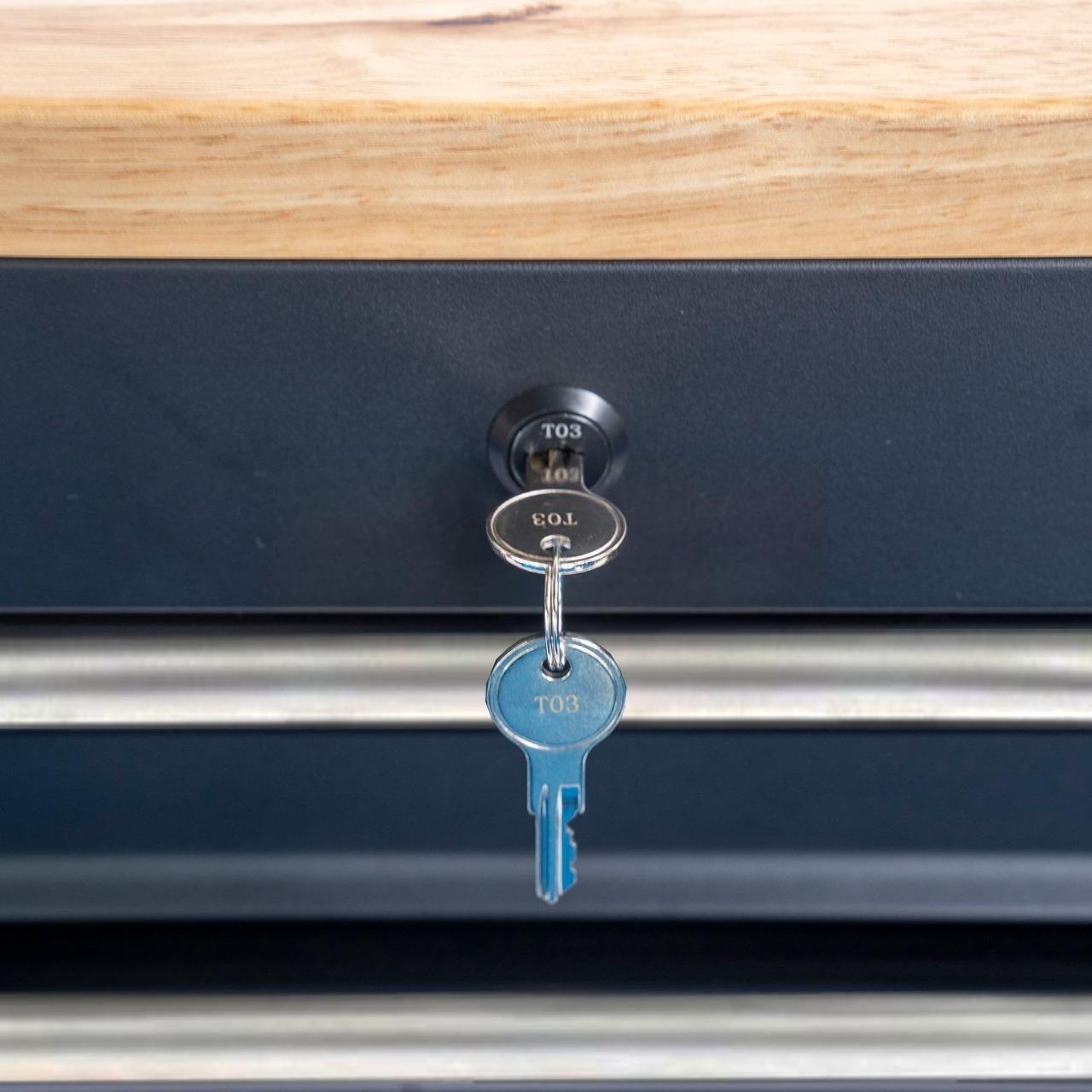

• Locks: Drawer lock: 01
  • Lock pull force: minimum 45kg

• Coating:
  • Color: Matt Black
  • Powder coating technology
  • Coating durability: 10 years

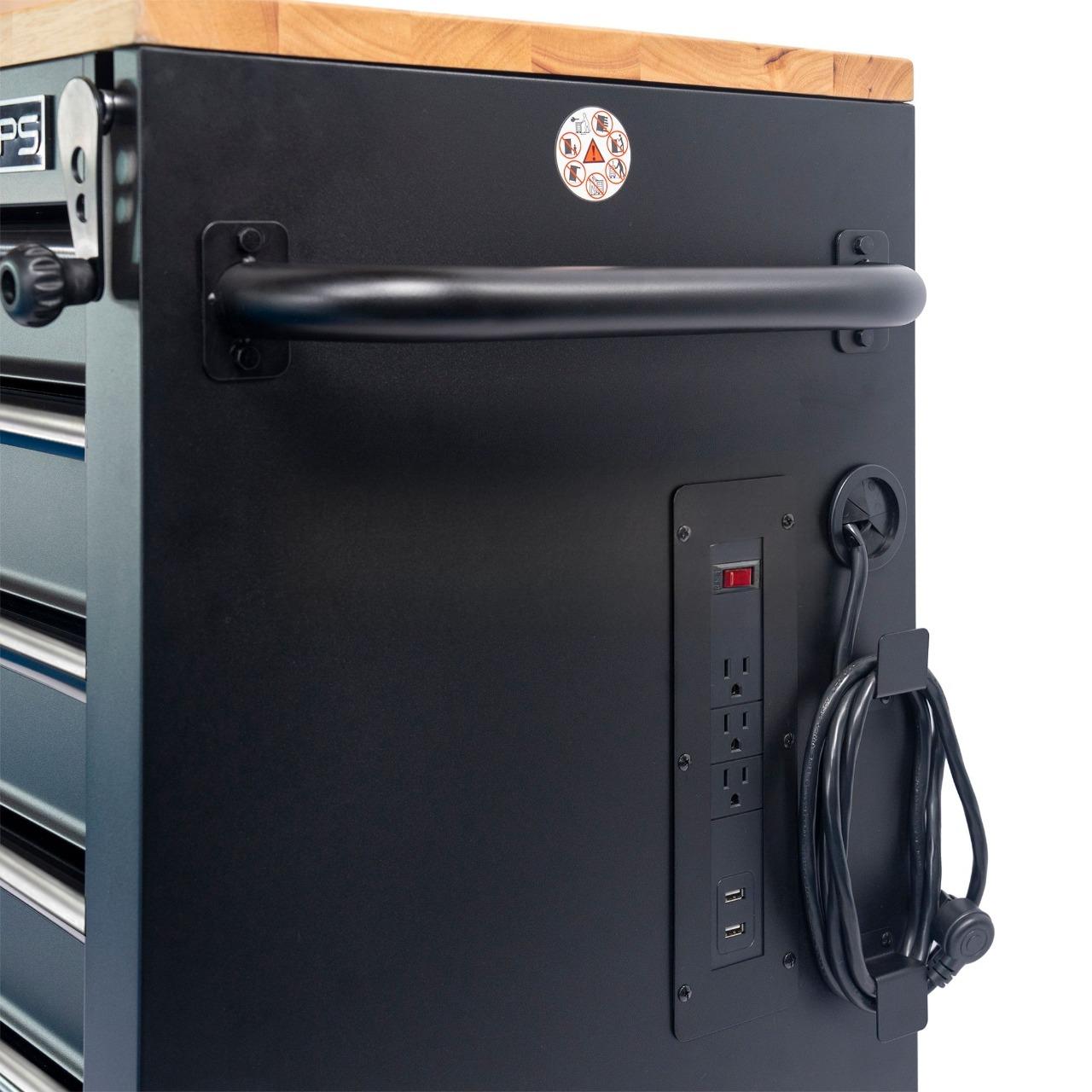

• Power strip : 2 USB (2.4A)

4. STANDARDS:

• Appearance:
  • 16 CFR 1500.48/1500.49 (Scope widened): Sharp point test
  • 16 CFR 1303: Lead-containing paint test

• Coating:
  • ASTM B117 (mod.) & ASTM D610 (mod.): Corrosion test
  • ASTM D3363 (mod.): Hardness test
  • ASTM D2794: Impact test
  • ASTM D4752: Solvent resistance rub test
  • ASTM D3359: Cross-cut tape test

• Steel: ASTM A1008: Standard specification for steel

• Function: ANSI/BIFMA X 5.9: Storage unit test – Static load, dynamic load, durability testing

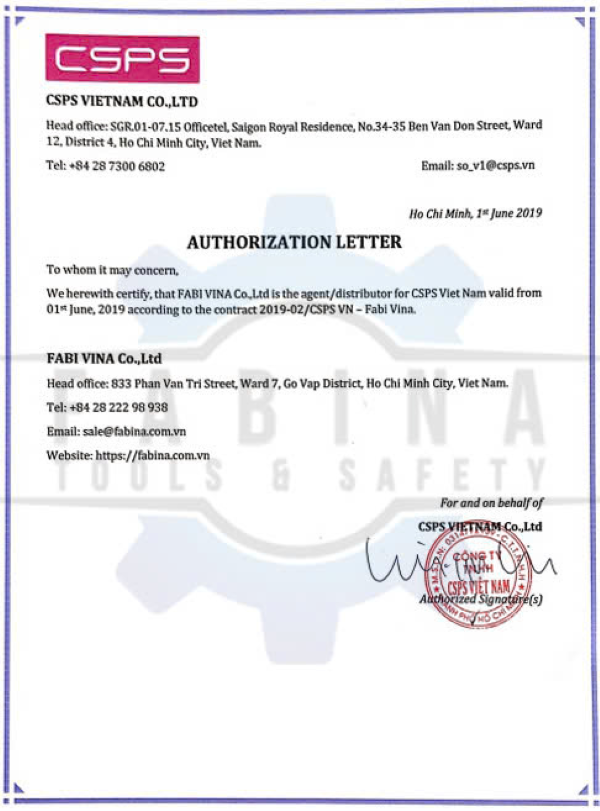

Authorized Distributor Certificate
